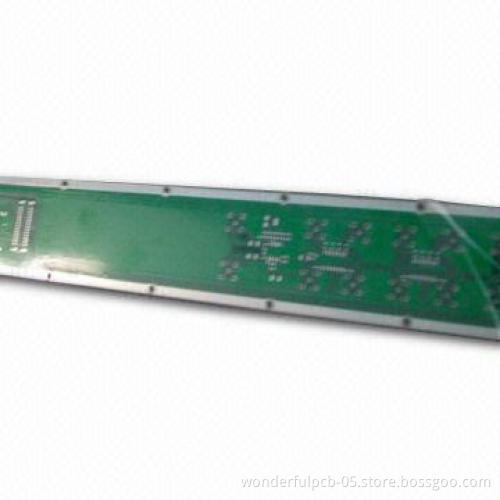

Double-sided PCB Board with 1,000mm Long Board, RoHS Standard, Used for Electronic Appliance

Double-sided PCB Board with 1,000mm Long Board, RoHS Standard, Used for Electronic Appliance

Get Latest Price

Payment Type:: T/T, OA and PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, OA and PayPal

Product Description

Specifications:

Material: aluminum
Layer: double
Copper thickness: 1oz
Solder mask: green
Silkscreen: white
Surface finish: HASL
Buried and blind hole: no
Applications: gas detector, remote control andtelecommunication products
Layers: 1 to 28
Board finished thickness: 0.2 to 7.0mm
Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free androgers
Maximum finished board size: 23 x 25mm (580 x 900mm)
Minimum drilled hole size: 3 mils (0.075mm)
Minimum line width: 3 mils (0.075mm)
Minimum line spacing: 3 mils (0.075mm)
Surface finish/treatment: HASL lead free, HAL, chemical tin,chemical gold, immersion silver/gold, OSP and gold plating
Copper thickness: 0.5 to 7.0oz
Solder mask color: green/yellow/black/white/red/blue
Copper thickness in hole: >25.0µm (>1 mil)
Inner packing: vacuum packing/plastic bag
Outer packing: standard carton packing
Shape tolerance: ±0.13
Hole tolerance:
- PTH: ±0.076
- NPTH: ±0.05
Certificates: UL, SGS and RoHS
Special requirements: buried and blind vias, controlledimpedance and BGA
Profiling: punching, routing, v-cut and beveling

Disclaimer: All trademarks shown here are for referencepurposes only. They are the property of their respective owners,and we are not authorized to sell items bearing suchtrademarks.
