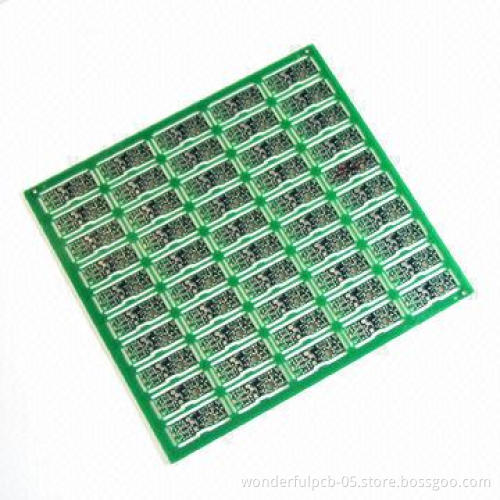

Double-sided PCB with Case and Plastic Enclosure, Customized Designs Welcomed, PCB Board, PCB Design

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Customized designs are welcomed

With case and plastic enclosure

Any other kinds of PCBs from 1 to 16 is specializing inhigh-tech multilayer

Large production capability

Quick turn-around

Applications:

LCD monitors and LCD TV sets

Military systems

Notebook computers main boards

Multimedia devices

Home uses, electric applications

Mobile phones

Our fabrication capacity for PCB:

Layer counts: 1 to 28

Board finished thickness: 0.21 to 7.0mm

Material: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,rogers

Finished board size: 23 x 25 (580 x mm) (maximum)

Drilled hole size: 3mil (0.075mm) (minimum)

Line width: 3 mil (0.075mm) (minimum)

Line spacing: 3 mil (0.075mm) (minimum)

Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, gold plating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0um (>1 mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±.13

Hole tolerance: PTH: ±.076 NPTH: ±.05

Certificate: UL-

Special requirements: buried and blind vias + controlledimpedance + BGA

Profiling: punching, routing, V-cut, beveling

Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
