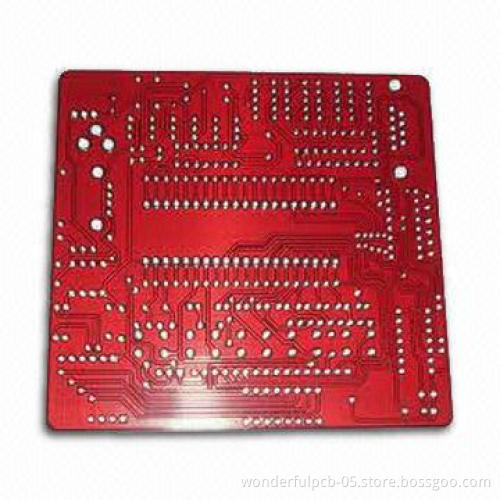

Two-layer PCB with FR4 Material, 243.36 x 245.74mm/1 + 1 + 1 Piece, 2oz Copper, HAL-lead Free

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

With FR4 material, 243.36 x 245.74mm/1 + 1 + 1 piece, 2ozcopper, HAL-lead free, 2 slot holes

Board thicknesses: 3.0mm

Size:289 x 124mm/2 pieces

Minimum hole size: 0.26mm

Minimum line width/space: 0.24mm/0.16mm, ENIG

Our production Capability for rigid PCB:

Layers: 1 to 28
Board finishing thickness: 0.21 to 7.0mm
Material: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free andRogers
Maximum finished board size: 23 × 25 (580 x 900mm)
Minimum drilled hole size: 3-mil (0.075mm)
Minimum line width: 3-mil (0.075mm)
Minimum line spacing: 3-mil (0.075mm)
Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, gold plating
Copper thickness: 0.5 to 7.0oz
Solder mask color: green/yellow/black/white/red/blue
Copper thickness in hole: >25.0um (>1-mil)
Inner packing: vacuum packing/plastic bag
Outer packing: standard carton packing
Shape tolerance: ±0.13
Hole tolerance:
PTH: ±0.076
NPTH: ±0.05

Certificate: UL

Special requirements: Buried and blind vias + controlledimpedance + BGA

Profiling: punching, routing, V-Cut, beveling

Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products

Layers: 1 to 28

Board finishing thickness: 0.21 to 7.0mm

Material: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free andRogers

Maximum finished board size: 23 × 25 (580 x 900mm)

Minimum drilled hole size: 3-mil (0.075mm)

Minimum line width: 3-mil (0.075mm)

Minimum line spacing: 3-mil (0.075mm)

Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, gold plating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0um (>1-mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

PTH: ±0.076

NPTH: ±0.05

Disclaimer: All trademarks shown here are for referencepurposes only. They are the property of their respective owners,and we are not authorized to sell items bearing suchtrademarks.
