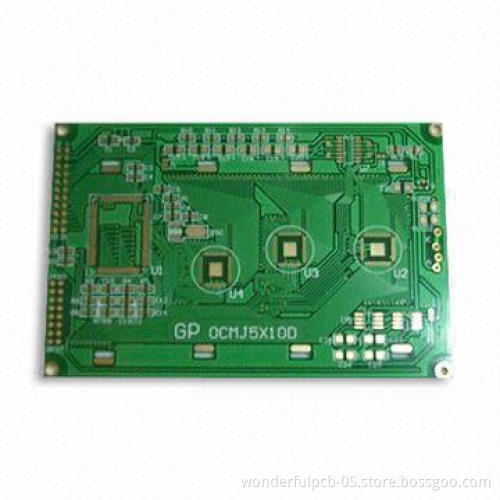

Double-sided PCB with White Solder Mask, Used for Electronic Products and PCB Boards/Designs/Pet

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Key specifications:

Material: FR-4
Layers: 2
Copper thickness: 2oz
Solder mask: green
Silkscreen: white
Surface finishing: ENIG
Buried and blind hole: not supported
Applications: gas detectors, remote controls andtelecommunication products

Reference: our production capability for rigid PCB

Layer: 1 to 28

Board finished thickness: 0.21 to 7.0mm

Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen-free anrogers

Maximum finished board size: 23 x 25 (580 x 900mm)

Minimum drilled hole size: 3-mil (0.075mm)

Minimum line width: 3-mil (0.075mm)

Minimum line spacing: 3-mil (0.075mm)

Surface finishing/treatment: HASL/HASL lead-free, HAL, chemicaltin, chemical gold, immersion silver, gold, OSP and goldplating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0um (>1-mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

PTH: ±0.076
NPTH: ±0.05

Certificate: UL

Special requirements: buried and blind vias with controlledimpedance and BGA

Profiling: punching, routing, V-cut and beveling

Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products

Disclaimer: All trademarks shown here are for referencepurposes only. They are the property of their respective owners,and we are not authorized to sell items bearing suchtrademarks.

Material: FR-4

Layers: 2

Copper thickness: 2oz

Solder mask: green

Silkscreen: white

Surface finishing: ENIG

Buried and blind hole: not supported

Applications: gas detectors, remote controls andtelecommunication products

PTH: ±0.076

NPTH: ±0.05
