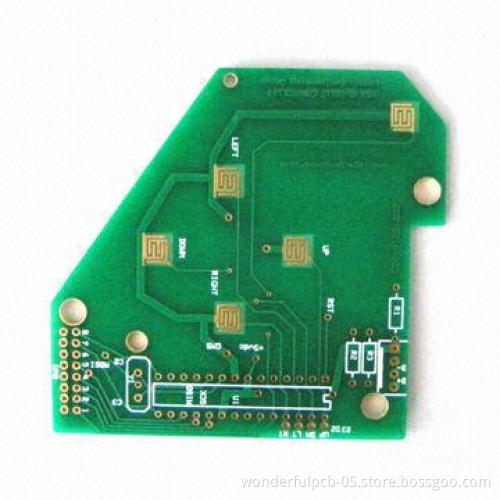

Double Sides PCB/PWB, Electronic Circuit, Single, 2, 4, 6L, HASL, Gold, Silver Finishing

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	OA, DP, COD, CAD, T/T, PayPal

Product Description

2 to 28 layers quick turn prototype

UL-, SGS- and RoHS-approvals

Parts purchase

Reference-our production capability for rigid PCB:

Layers: 1 to 28 layers
Board finished thickness: 0.2 to 7.0mm
Material: FR-4, CEM-1,CEM-3, high TG, FR4 halogen free,rogers
Finished board size: 23 x 25 (maximum) ( 580 x 900mm )
Drilled hole size: 3-mil (0.075mm) (minimum)
Line width: 3-mil (0.075mm) (minimum)
Line spacing: 3-mil (0.075mm) (minimum)
Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, gold plating
Copper thickness: 0.5 to 7.0oz
Solder mask colors: green/yellow/black/white/red/blue
Copper thickness in hole: >25.0μm (>1-mil)
Inner packing: vacuum packing/plastic bag
Outer packing: standard carton packing
Shape tolerance: ±0.13
Hole tolerance:
- PTH: ±0.076
- NPTH: ±0.05
Certifications: UL-,SGS- and RoHS-approvals
Special requirements: Buried and blind via + controlledimpedance + BGA
Profiling: punching, routing, V-CUT, beveling
Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
