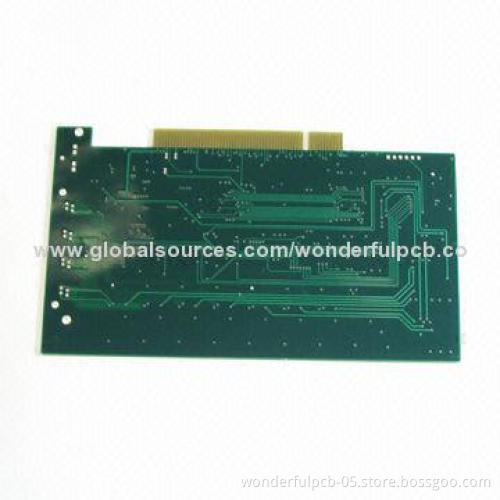

Double-sided PCB with White Silkscreen, Used for Electronic Products
  • Double-sided PCB with White Silkscreen, Used for Electronic Products
Double-sided PCB with White Silkscreen, Used for Electronic Products

Double-sided PCB with White Silkscreen, Used for Electronic Products

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Key specifications:
    • Material: FR-4
    • Copper thickness: 2oz
    • Solder mask: green
    • Silkscreen: white
    • Surface finishing: ENIG
    • Buried and blind hole: not supported
    • Application: gas detectors, remote controls and telecommunication products
  • Capability:
    • Layers: 1 to 28
    • Board finished thickness: 0.21 to 7.0mm
    • Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen-free and Rogers
    • Maximum finished board size: 23 x 25mm (580 x 900mm)
    • Minimum drilled hole size: 3-mil (0.075mm)
    • Minimum line width: 3-mil (0.075mm)
    • Minimum line spacing: 3-mil (0.075mm)
    • Surface finishing/treatment: HASL/HASL lead-free, HAL, chemical tin, chemical gold, immersion silver/gold, OSP and gold-plating
    • Copper thickness: 0.5 to 7.0oz
    • Solder mask color: green/yellow/black/white/red/blue
    • Copper thickness in hole: >25.0μm (>1mil)
    • Inner packing: vacuum packing/plastic bag
    • Outer packing: standard carton packing
    • Shape tolerance: ±0.13
    • Hole tolerance:
      • PTH: ±0.076
      • NPTH: ±0.05
    • UL pending
    • Special requirements: buried and blind vias with controlled impedance and BGA
    • Profiling: punching, routing, V-cut and beveling
  • Material: FR-4
  • Copper thickness: 2oz
  • Solder mask: green
  • Silkscreen: white
  • Surface finishing: ENIG
  • Buried and blind hole: not supported
  • Application: gas detectors, remote controls and telecommunication products
  • Layers: 1 to 28
  • Board finished thickness: 0.21 to 7.0mm
  • Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen-free and Rogers
  • Maximum finished board size: 23 x 25mm (580 x 900mm)
  • Minimum drilled hole size: 3-mil (0.075mm)
  • Minimum line width: 3-mil (0.075mm)
  • Minimum line spacing: 3-mil (0.075mm)
  • Surface finishing/treatment: HASL/HASL lead-free, HAL, chemical tin, chemical gold, immersion silver/gold, OSP and gold-plating
  • Copper thickness: 0.5 to 7.0oz
  • Solder mask color: green/yellow/black/white/red/blue
  • Copper thickness in hole: >25.0μm (>1mil)
  • Inner packing: vacuum packing/plastic bag
  • Outer packing: standard carton packing
  • Shape tolerance: ±0.13
  • Hole tolerance:
    • PTH: ±0.076
    • NPTH: ±0.05
  • UL pending
  • Special requirements: buried and blind vias with controlled impedance and BGA
  • Profiling: punching, routing, V-cut and beveling
  • PTH: ±0.076
  • NPTH: ±0.05
