Quick-turnaround Double-sided PCB with Green Solder Mask, Used for Electronic Products

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

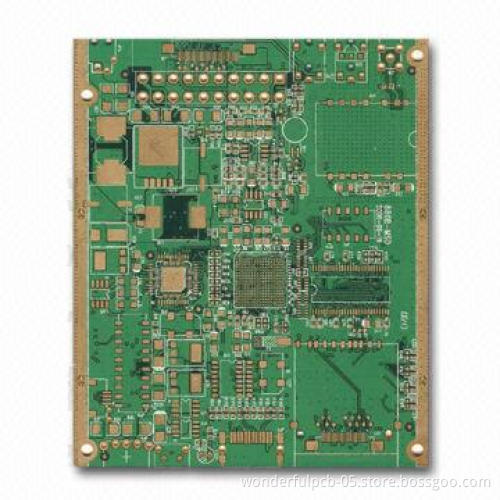

Double-sided MP3 PCB

Used for electronic products

Key specifications:

Reference: our production capability for rigid PCB

Layers: 1 to 28

Board finished thickness: 0.21 to 7.0mm

Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen-free,Rogers

Finished board size: 23 x 25, 580 x 900mm, maximum

Drilled hole size: 3mil (0.075mm), minimum

Line width: 3mil (0.075mm), minimum

Line spacing: 3mil (0.075mm), minimum

Surface finish/treatment: HASL/HASL lead-free, HAL, chemicaltin, chemical gold, immersion silver, gold, OSP and goldplating

Copper thicknesses: 0.5 to 7.0oz

Solder mask colors: green, yellow, black, white, red andblue

Copper thickness in hole: >25.0um (>1mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

With UL mark

Special requirements: buried and blind vias with controlledimpedance and BGA

Profiling: punching, routing, V-cut and beveling

OEM services are provided to all sorts of printed circuit boardassembly as well as electronic encased products

Material: FR-4

Layer: 2

Copper thickness: 2oz

Solder -mask: green

Silkscreen: white

Surface finish: ENIG

Buried and blind hole not supported

Applications: gas detector, remote control, telecommunicationproducts

PTH: ±0.076

NPTH: ±0.05
