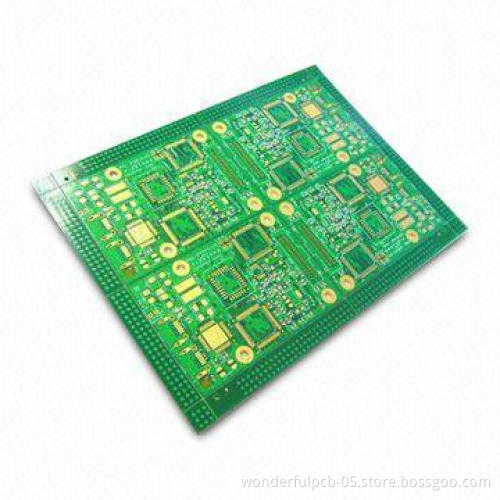

Double-sided PCB w/ Green Solder Mask, V-cut Technology and White Silkscreen, Made of FR4 Material

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Paypal

Product Description

Layers: 1 to 28

Board finished thickness: 0.2 to 7.0mm

Solder mask: green

Silkscreen: white

Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen-free androgers

Finished board size: 23 x 25 (580 x 900mm) (maximum)

Drilled hole size: 3 mils (0.075mm) (minimum)

Line width: 3 mils (0.075mm) (minimum)

Line spacing: 3 mils (0.075mm) (minimum)

Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP and goldplating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0µm (>1 mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

Certifications: UL, SGS and RoHS

Special requirements: buried and blind vias, controlledimpedance and BGA

Profiling: punching, routing, v-cut and beveling

Applications: gas detectors, remote controls andtelecommunication products

PTH: ±0.076

NPTH: ±0.05
