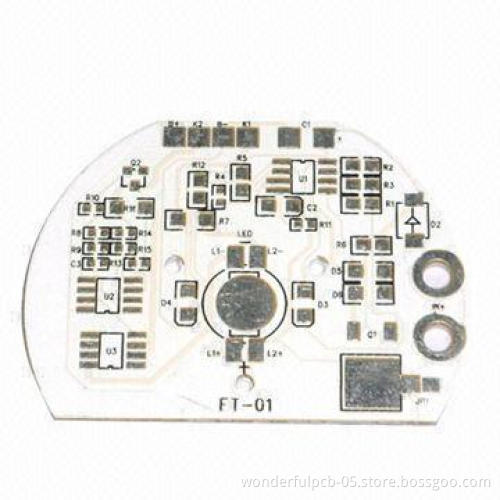

Aluminum Base PCB with White Silkscreen and HASL Surface Finish, Made of Aluminum Material

Get Latest Price

Payment Type:: Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Paypal

Product Description

Key specifications:

Material: aluminum

Layer: single

Copper thickness: 1oz

Solder mask: green

Silkscreen: white

Surface finish: HASL

Buried and blind hole: no

Reference-our production capability for rigid PCB:

Layers: 1 to 28

Board finished thickness: 0.2 to 7.0mm

Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,Rogers (maximum)

Finished board size: 23 x 25mm (580 x 900mm)

Drilled hole size: 3 mils (0.075mm)

Line width: 3 mils (0.075mm)

Line spacing: 3 mils (0.075mm)

Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold,

Immersion silver/gold, OSP, gold-plating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0µm (>1 mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

PTH: ±0.076

NPTH: ±0.05

Certificate: UL, SGS, RoHS

Applications: gas detectors, remote controls, telecommunicationproducts

Special requirements: buried and blind via + controlledimpedance + BGA

Profiling: punching, routing, v-cut, beveling

Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products

Disclaimer: All trademarks shown here are for referencepurposes only. They are the property of their respective owners,and we are not authorized to sell items bearing suchtrademarks.
