Product Description

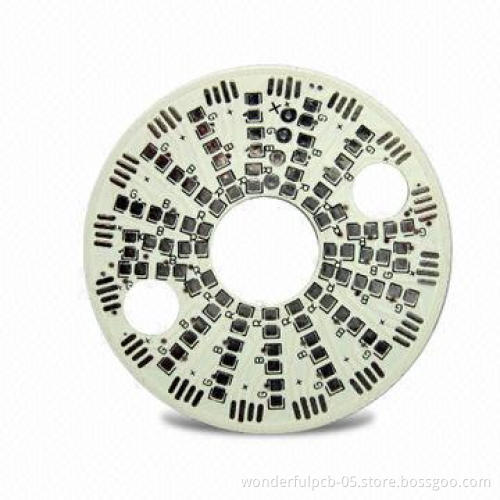

Aluminum base PCB

Number of layers: 1

Board thickness: 3.0mm

Surface technique: OSD

Our fabrication capacity for rigid PCB:

Layer counts: 1 to 28
Board finished thickness: 0.21 to 7.0mm
Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,rogers
Maximum finished board size: 23 × 25 (580mm ×mm)
Minimum drilled hole size: 3 mils (0.075mm)
Minimum line width: 3 mils (0.075mm)
Minimum line spacing: 3 mils (0.075mm)
Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, gold plating
Copper thickness: 0.5 to 7.0oz
Solder mask color: green/yellow/black/white/red/blue
Copper thickness in hole: >25.0um (>1 mil)
Inner packing: vacuum packing/plastic bag
Outer packing: standard carton packing
Shape tolerance: ±.13
Hole tolerance:
- PTH: ±.076
- NPTH: ±.05
Certificate: UL-approved
Special requirements: buried and blind via + controlledimpedance + BGA
Profiling: punching, routing, V-cut, beveling
Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products

Disclaimer: All trademarks shown here are for referencepurposes only. They are the property of their respective owners,and we are not authorized to sell items bearing suchtrademarks.
