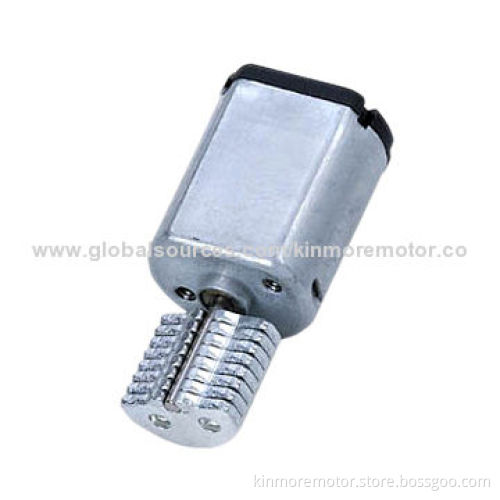

4V DC Vibration Motor with Strong Sense for Massager Machines

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal

Product Description

Specifications:

Way of commutation: metal brush
Structure: 2-pole stator and 3-slot armature
Rotation: CW/CCW and reversible
With R9.0 x L6.0 semi-circle SECC eccentric wheel
Options: EMI/EMC suppression, brass eccentric wheel
Rated voltage: 4V DC
At R9.0 x L6.0 SECC eccentric wheel:
On load:Speed: 6,000rpm ±10%
Current: 500mA (maximum)
At stall:
- Current: 1100mA (maximum)
- Suitable for massages and adult toys
Motor housing (D x flat x L): 15.5 x 12 x 18.6mm (SECD material)
Shaft (D): 1.5mm carbon steel nickel coating
Applications: home appliance, power tools, toys, model, precision instrument, office equipment, personal care product, automotive, audio and visual equipment and more
Customization options:OEM and customized designs are available
With RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small Tm)
High-torque at a low-speed
PTC protection
Penolic resin base commentator
Epoxy coating armature
Lightweight and long lifespan
We assure high-quality, reasonable price and excellent after-sales service so contact us now

Way of commutation: metal brush

Structure: 2-pole stator and 3-slot armature

Rotation: CW/CCW and reversible

With R9.0 x L6.0 semi-circle SECC eccentric wheel

Options: EMI/EMC suppression, brass eccentric wheel

Rated voltage: 4V DC

At R9.0 x L6.0 SECC eccentric wheel:

On load:Speed: 6,000rpm ±10%

Current: 500mA (maximum)

At stall:

Current: 1100mA (maximum)
Suitable for massages and adult toys

Motor housing (D x flat x L): 15.5 x 12 x 18.6mm (SECD material)

Shaft (D): 1.5mm carbon steel nickel coating

Applications: home appliance, power tools, toys, model, precision instrument, office equipment, personal care product, automotive, audio and visual equipment and more

Customization options:OEM and customized designs are available

With RoHS Directive-compliant

Ball bearing in output side

EMI suppression

Low-cogging design

High-degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low-noise design

Fast response (small Tm)

High-torque at a low-speed
