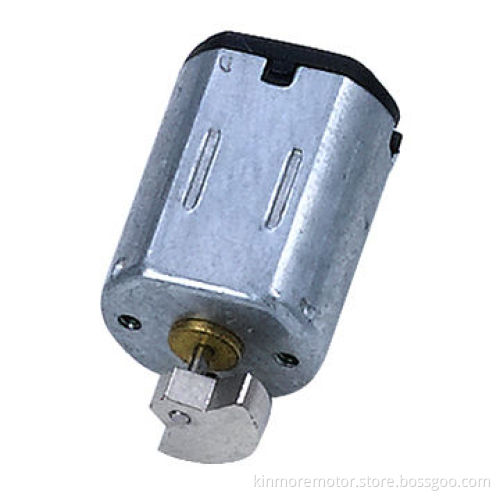

Vibrator Motor FF-N20VA with Tungsten Alloy Eccentric Wheel for Adult Toy/Massager/Beauty Apparatus

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Specifications:

Motor housing (D x F x L): 12 x 10 x 15.1mm (material: SECD)
Shaft (diameter): 1.0mm carbon steel (nickel coating)
End play: 0.05 to 0.35mm
Way of commutation: Precious metal brush
Structure: 2-pole stator and 3-slot armature
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Options: EMI/EMC suppression, vibration

Technical performance data:

Measuring conditions:
- Rated voltage: 1.5V DC
- Motor position: to be measured with motor horizontally held
- Environment temperature: 5 to 35
- Environment humidity range: 40 to 85% RH
Electrical characteristics:
- Start voltage: 0.4V
- Rated Speed: 10800± 10%rpm
- Rated Current: 0.15A
- Rated Load: R4.2*2.9
- At stall
  - Current: 0.95A

Customization options:

OEM and customization are available
With RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-clogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial GAP
Low-noise design
Fast response (small Tm)
High-torque at a low-speed
PTC protection
Penolic resin base commentator
Epoxy coating armature
Lightweight and long lifespan

Inspections to guarantee reliable quality:
Inspection occurs throughout the whole process flow, unitizing hexagon CMM, X-ray spectrometer, MEA motor performance testing system, tension tester, torque tester, motor performance testing system and other geometrical testing equipment, we perform a battery of inspections from tooling, material to finished products as below:
-Tooling inspection
-Material lot acceptance inspection
-Material life test
-First article inspection
-Operator self-inspection
-Random inspection
-100% inspection to key process and motor electric performance
-Final inspection
-Outgoing inspection

About samples:

Motor housing (D x F x L): 12 x 10 x 15.1mm (material: SECD)

Shaft (diameter): 1.0mm carbon steel (nickel coating)

End play: 0.05 to 0.35mm

Way of commutation: Precious metal brush

Structure: 2-pole stator and 3-slot armature

Magnet type: Nd-Fe-B

Rotation: CW/CCW and reversible

Options: EMI/EMC suppression, vibration
