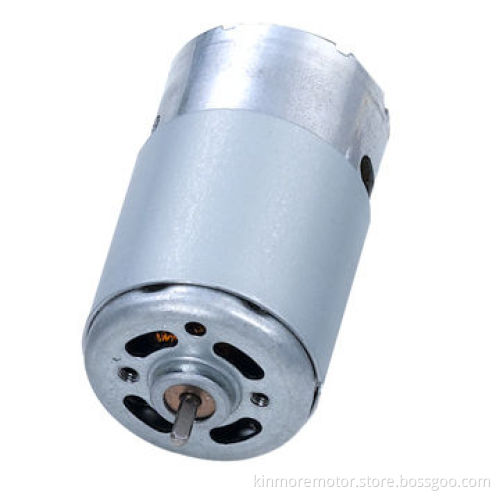

Motor electric for car
  • Motor electric for car
Motor electric for car

Motor electric for car

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Measuring conditions:
    • Rated voltage: 12 V DC
    • Motor position: To be measured with motor horizontally held
    • Environmental temperatures: 25±10℃
    • Environmental humidity: 65±20% RH
  • Electrical characteristics (At initial stage after 30 seconds run-in):
    • At no load:
      • Speed: 5,200 ±10% rpm
      • Current: 0.14A max
      • Torque: 65.3g.cm
      • Speed: 4352 ±10% rpm
    • At max efficiency:
      • Current: 0.39A (max 0.6A)
    • At stall:
      • Torque: 400g.cm
      • Current: 2A (max 3.0 A)
    • Direction of rotation: CCW (Counter-clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)
  • Mechanical characteristics:
    • End play: 0.05 ～0.5mm
    • Operating temperatures: 0~ +45℃
  • Rated voltage: 12 V DC
  • Motor position: To be measured with motor horizontally held
  • Environmental temperatures: 25±10℃
  • Environmental humidity: 65±20% RH
  • At no load:
    • Speed: 5,200 ±10% rpm
    • Current: 0.14A max
    • Torque: 65.3g.cm
    • Speed: 4352 ±10% rpm
  • At max efficiency:
    • Current: 0.39A (max 0.6A)
  • At stall:
    • Torque: 400g.cm
    • Current: 2A (max 3.0 A)
  • Direction of rotation: CCW (Counter-clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)
  • Speed: 5,200 ±10% rpm
  • Current: 0.14A max
  • Torque: 65.3g.cm
  • Speed: 4352 ±10% rpm
  • Current: 0.39A (max 0.6A)
  • Torque: 400g.cm
  • Current: 2A (max 3.0 A)
  • End play: 0.05 ～0.5mm
  • Operating temperatures: 0~ +45℃
