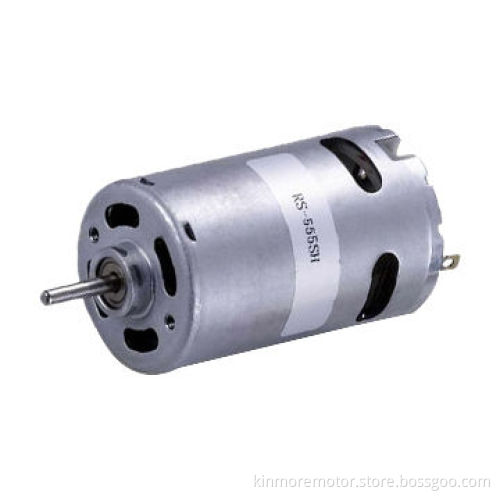

6V DC small electric motor with metal end cap, fit for ride-on car, cordless power tool

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Specifications:

Motor housing (D x L): 35.8 x 57mm
Material: SECD
Shaft: Ø3.175mm carbon steel (nickel coated, D-shape or knurling available)
Way of commutation: carbon leaf brush system
Structures: 2 poles starter and 5 slots armature
Insulation: class F-magnet wire
Rotation: CW/CCW, reversible

Performance:

Rated voltage: 6V DC
At no load:
- Speed: 6,000rpm
- Current: 0.47A
At maximum efficiency:
- Speed: 5,079rpm
- Current: 2.59A
- Torque: 19.6mNm
- Output: 10.4W
- Efficiency: 66.9%
At stall:
- Current: 14.3A
- Torque: 127.5mNm
Options:
- Shaft length, ball bearing, technical data like voltage, speed,torque, EMI/EMC suppression (optional)

Packing:

Quantity: 60 pieces
Gross weight: up to 13.8kg
Dimensions: 39 x 29 x 19cm

About us:

Main products: auto DC, electric, gear, DC, brush DC, spurgear, micro, vibration and more motors
Product size range: 6 - 52mm, diameter
DC voltage range: 1.5 - 42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1 - 30,000RPM
Stall torque: 5g.cm - 30kg.cm

Applications:

Home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio & visual equipment and so on

Our services:

OEM and customization are available
RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High degree of protection
Small mechnical time constant
Resist intense vibrations
Zero axial gap
Low noise design
Fast response (Small Tm)
High torque at a low speed
PTC protection
Penolic resin base commutator
Epoxy coating armature
Light weight and long life
