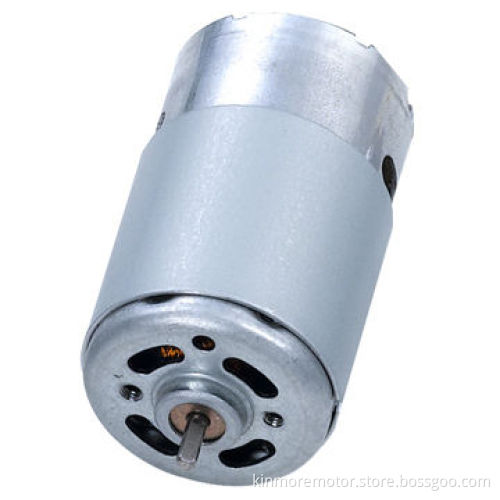

Micro DC motor for electric car wash brush

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Specification:

Measuring conditions:

Electrical characteristics(at initial stage after 30 seconds run-in):

At no load:
- Speed: 19000 ±10% rpm
- Current: 0.88A(max 1.3 A)
At max efficiency:
- Torque: 151.7g.cm
- Speed: 16572 ±10%rpm
- Current: 6.01A(max 9.01A)
At stall:
- Torque: 1187g.cm
- Current: 41A (max 61.5A)
- Direction of rotation: CCW (counter-clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)

Mechanical characteristics:

Model no: RS-390PH-5521R

Rated voltage: 6V DC

Motor position: to be measured with motor horizontally held

Environmental temperature： 25 ±10℃

Environmental humidity： 65 ±20%RH

At no load:

At max efficiency:

At stall:

Torque: 1187g.cm
Current: 41A (max 61.5A)
Direction of rotation: CCW (counter-clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)

Speed: 19000 ±10% rpm

Current: 0.88A(max 1.3 A)

Torque: 151.7g.cm

Speed: 16572 ±10%rpm

Current: 6.01A(max 9.01A)

Torque: 1187g.cm

Current: 41A (max 61.5A)

Direction of rotation: CCW (counter-clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)

Dimension drawing: see<outline>

End play： 0.05~0.55mm maximum

Operating temperatures: -10~60℃
