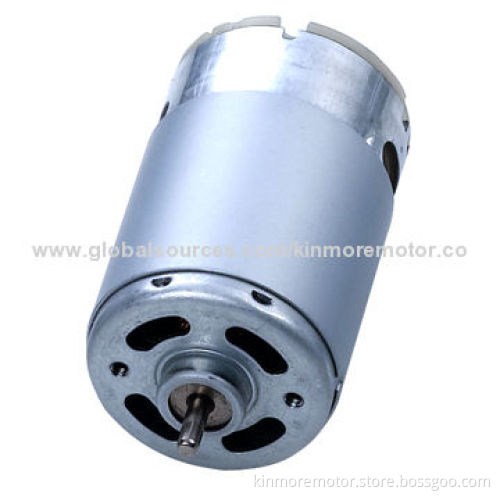

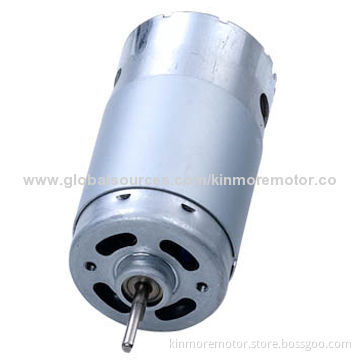

12V DC Fan Motor with Plastic End Cap and High-torque for Vehicles

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Dimensions of the motor:

Diameter of motor housing: 35.8mm
Length of motor housing: 57mm
Diameter of shaft: 3.175mm
Length of shaft: could be custom-made

Specifications:

Rated voltage: 12V DC
No loading:
- Speed: 7,800rpm
- Current: 0.3A
At maximum efficiency:
- Speed: 6708rpm
- Current: 1.84A
- Torque: 223gcm/21.9mNm
Output: 15.35W
Stall torque: 1591gcm/156mNm
Stall current: 11.31A
Direction of rotation: CW/CCW

Remark: the above technical data are only for reference, we can customize them according to different requirements after evaluation

Construction of motor:

Two-pole stator
SR ferrite permanent magnet
3, 5, 7, 8, 9 and 12 slots armature
Silicone steel lamination with epoxy coating
High-carbon steel shaft
Cu-Ag alloy commentator
Copper graphite brushes
Cu leaf brush commutation system
SECD round/flat-shaped housing
SECD end cap/PA66 and fiber end cap
Cylinder (self-aligning) sintered bush
155° (class F) copper wire

Inspection to guarantee reliable quality:

Tooling inspection
Material lot acceptance inspection
Material lifespan test
First article inspection
Operator self-inspection
Random inspection
100% inspection to key process and motor electric performance
Final inspection

Diameter of motor housing: 35.8mm

Length of motor housing: 57mm

Diameter of shaft: 3.175mm

Length of shaft: could be custom-made

Rated voltage: 12V DC

No loading:

Speed: 7,800rpm
Current: 0.3A

At maximum efficiency:

Speed: 6708rpm
Current: 1.84A
Torque: 223gcm/21.9mNm

Output: 15.35W

Stall torque: 1591gcm/156mNm

Stall current: 11.31A

Direction of rotation: CW/CCW

Speed: 7,800rpm

Current: 0.3A

Speed: 6708rpm

Current: 1.84A

Torque: 223gcm/21.9mNm

Two-pole stator

SR ferrite permanent magnet

3, 5, 7, 8, 9 and 12 slots armature

Silicone steel lamination with epoxy coating

High-carbon steel shaft

Cu-Ag alloy commentator

Copper graphite brushes

Cu leaf brush commutation system

SECD round/flat-shaped housing

SECD end cap/PA66 and fiber end cap

Cylinder (self-aligning) sintered bush

155° (class F) copper wire

Tooling inspection

Material lot acceptance inspection

Material lifespan test

First article inspection

Operator self-inspection

Random inspection

100% inspection to key process and motor electric performance

Final inspection
