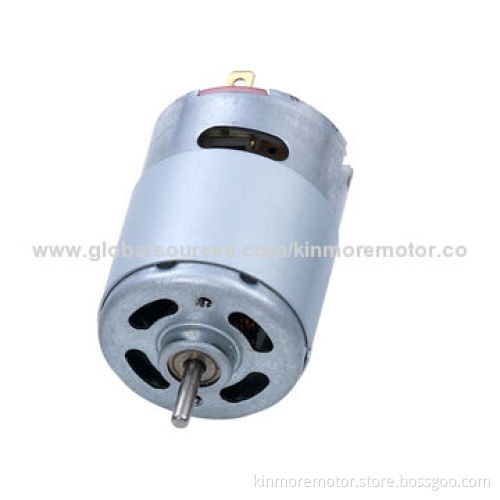

Small DC motor, DC 7.2V with class F magnet wire for headrest adjuster

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Features:

Metal end cap
Class F magnet wire
Leaf brush system
3 or 5 slots armature
Carbon steel shaft

Dimensions:

Diameter of the motor: 37mm
Length of the motor: 50mm
Diameter of the shaft: 3.175mm

Specifications:

Voltages:
- Operating range: 6.0-8.0V
- Nominal voltage: 7.2V
No loading:
- Speed: 20000rpm
- Current: 1.2A
At maximum efficiency:
- Speed: 17317rpm
- Current: 7.75A
- Torque: 228g.cm
- Output: 40.5W
Stall torque: 1698g.cm
Stall current: 50A
Direction of rotation: CW/CCW
Note: all of the data could be custom made

Typical applications:

Cordless power tools
Air pump/EPB/Door closer/EPB/ETC
Blige Pump
RC Model

Customization options:

OEM and customization are available
With RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero Axial gap
Low-noise design
Fast response (small TM)
High torque at a low-speed
PTC protection
Pinole resin base commentator
Epoxy coating armature
Lightweight and long lifespan

Our main products are DC motor, gear motor and vibration motor, the parameters can be customized

Metal end cap

Class F magnet wire

Leaf brush system

3 or 5 slots armature

Carbon steel shaft

Diameter of the motor: 37mm

Length of the motor: 50mm

Diameter of the shaft: 3.175mm

Voltages:

Operating range: 6.0-8.0V
Nominal voltage: 7.2V

No loading:

Speed: 20000rpm
Current: 1.2A

At maximum efficiency:

Speed: 17317rpm
Current: 7.75A
Torque: 228g.cm
Output: 40.5W

Stall torque: 1698g.cm

Stall current: 50A

Direction of rotation: CW/CCW

Note: all of the data could be custom made

Operating range: 6.0-8.0V

Nominal voltage: 7.2V

Speed: 20000rpm

Current: 1.2A

Speed: 17317rpm

Current: 7.75A

Torque: 228g.cm

Output: 40.5W

Cordless power tools

Air pump/EPB/Door closer/EPB/ETC

Blige Pump

RC Model

OEM and customization are available

With RoHS Directive-compliant

Ball bearing in output side

EMI suppression

Low-cogging design

High-degree of protection

Small mechanical time constant

Resist intense vibrations

Zero Axial gap

Low-noise design

Fast response (small TM)

High torque at a low-speed

PTC protection

Pinole resin base commentator

Epoxy coating armature

Lightweight and long lifespan
