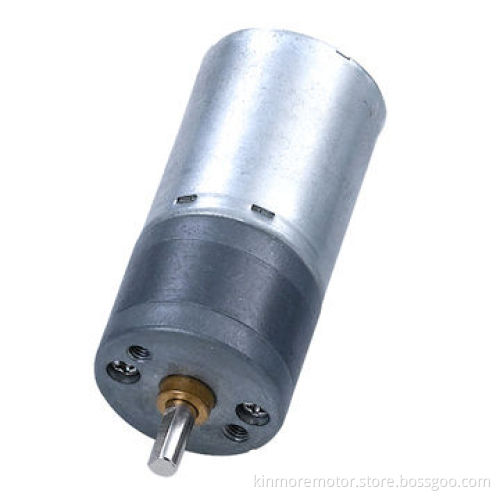

Geared Motor, 25mm for Vending Machine, ATM/Robot/Toy
  • Geared Motor, 25mm for Vending Machine, ATM/Robot/Toy
Geared Motor, 25mm for Vending Machine, ATM/Robot/Toy

Geared Motor, 25mm for Vending Machine, ATM/Robot/Toy

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Specification model no.: KM-25A370-478-1208
  • Measuring conditions
    • Rated voltage: 12V DC
    • Motor Position: to be measured with motor horizontally held
    • Environmental temperature: 25 ±10℃
    • Environmental humidity: 65 ±20% RH
  • Electral characteristics (at initial stage after 30 seconds run-in):
    • At no load
      • Speed: 8.1 ±12%rpm
      • Current: 0.016A (max. 0.03A)
    • At on load
      • Torque: 3kg.cm
      • Speed: 6.7 ±12%rpm
      • Current: 0.073A (max. 0.11A)
    • Direction of rotation: CW (clockwise when viewing from the output shaft end with positive voltage applied to positive terminal）
  • Mechanical characteristics:
    • Dimension drawing: see<outline>
    • End play: 0.5mm max.
    • Operating temperature: -10 ~ 60℃
  • Rated voltage: 12V DC
  • Motor Position: to be measured with motor horizontally held
  • Environmental temperature: 25 ±10℃
  • Environmental humidity: 65 ±20% RH
  • At no load
    • Speed: 8.1 ±12%rpm
    • Current: 0.016A (max. 0.03A)
  • At on load
    • Torque: 3kg.cm
    • Speed: 6.7 ±12%rpm
    • Current: 0.073A (max. 0.11A)
  • Direction of rotation: CW (clockwise when viewing from the output shaft end with positive voltage applied to positive terminal）
  • Speed: 8.1 ±12%rpm
  • Current: 0.016A (max. 0.03A)
  • Torque: 3kg.cm
  • Speed: 6.7 ±12%rpm
  • Current: 0.073A (max. 0.11A)
  • Dimension drawing: see<outline>
  • End play: 0.5mm max.
  • Operating temperature: -10 ~ 60℃
