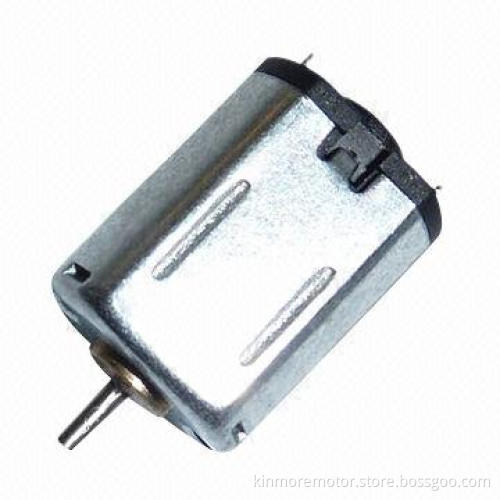

3V DC Micro Motor with 10 x 8 x 12.5mm Housing, 1.0mm Diameter Shaft for Blood Pressure Pumps, Toys
  • 3V DC Micro Motor with 10 x 8 x 12.5mm Housing, 1.0mm Diameter Shaft for Blood Pressure Pumps, Toys
  • 3V DC Micro Motor with 10 x 8 x 12.5mm Housing, 1.0mm Diameter Shaft for Blood Pressure Pumps, Toys
3V DC Micro Motor with 10 x 8 x 12.5mm Housing, 1.0mm Diameter Shaft for Blood Pressure Pumps, Toys
3V DC Micro Motor with 10 x 8 x 12.5mm Housing, 1.0mm Diameter Shaft for Blood Pressure Pumps, Toys

3V DC Micro Motor with 10 x 8 x 12.5mm Housing, 1.0mm Diameter Shaft for Blood Pressure Pumps, Toys

Get Latest Price
Payment Type:
LC, TT
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: LC,TT
Product Description
Product Description
  • Specifications:

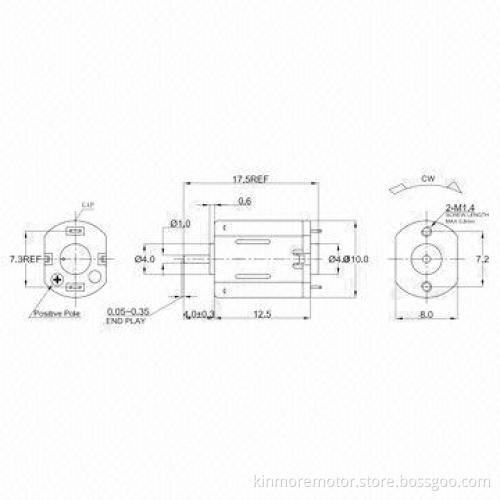

    • Motor housing (D x F x L): 10 x 8 x 12.5mm
    • Material: SECD
    • Shaft (diameter): 1.0mm carbon steel (nickel coating)
    • Way of commutation: metal brush
    • Structure: 2-pole stator and 3-slot armature
    • Magnet type: Nd-Fe-B
    • Rotation: CW/CCW and reversible
    • Options: extended shaft on the end cap side, EMI/EMCsuppression
  • Technical performance data:
    • Rated voltage: 3.0V DC
    • At no load:
      • Speed: 12,900rpm
      • Current: 0.055A (maximum)
    • Efficiency (maximum):
      • Speed: 10,300rpm
      • Current: 0.11A
      • Torque: 1.0g.cm
    • At stall:
      • Current: 0.38A (maximum)
      • Torque: 4g.cm (minimum)
    • Customized data requirements are welcome for our engineer'sevaluation
  • Applications:
    • Suitable for blood pressure pumps and toys
  • Motor housing (D x F x L): 10 x 8 x 12.5mm
  • Material: SECD
  • Shaft (diameter): 1.0mm carbon steel (nickel coating)
  • Way of commutation: metal brush
  • Structure: 2-pole stator and 3-slot armature
  • Magnet type: Nd-Fe-B
  • Rotation: CW/CCW and reversible
  • Options: extended shaft on the end cap side, EMI/EMCsuppression
  • Rated voltage: 3.0V DC
  • At no load:
    • Speed: 12,900rpm
    • Current: 0.055A (maximum)
  • Efficiency (maximum):
    • Speed: 10,300rpm
    • Current: 0.11A
    • Torque: 1.0g.cm
  • At stall:
    • Current: 0.38A (maximum)
    • Torque: 4g.cm (minimum)
  • Customized data requirements are welcome for our engineer'sevaluation
  • Speed: 12,900rpm
  • Current: 0.055A (maximum)
  • Speed: 10,300rpm
  • Current: 0.11A
  • Torque: 1.0g.cm
  • Current: 0.38A (maximum)
  • Torque: 4g.cm (minimum)
  • Suitable for blood pressure pumps and toys
