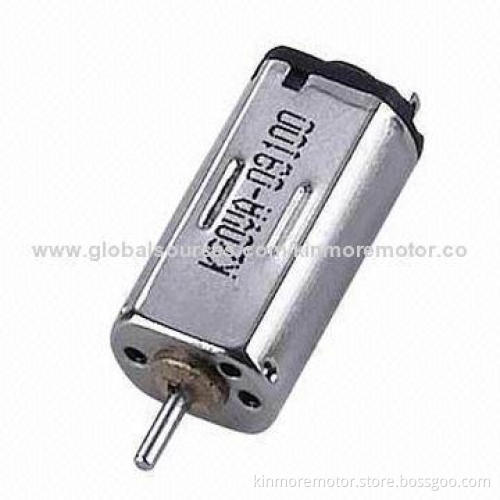

3.5V High-speed Electrical DC Motor for DVD and CD-ROM, CW/CCW and Reversible Rotation

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T and L/C

Product Description

Motor housing (D x flat x L): 8 x 6 x 14.5mm (material: SECD)

Shaft (diameter): 1.0mm carbon steel (nickel coating)

Way of commutation: metal brush

Structure: 2-pole stator and 3-slot armature

Magnet type: NdFeB

Rotation: CW/CCW and reversible

Options: EMI/EMC suppression, vibrator

Rated voltage: 3.5V DC

Motor position: to be measured with motor horizontally held

Environmental temperature: 5 to 35°C

Environmental humidity: 40 to 85% RH

Staring voltage: 1.2V

Electrical characteristics (at initial stage after 30 seconds run-in):

No load:
- Speed: 23,800rpm ±10%
- Current: 0.04A
On load:
- Torque: 1.25g.cm
- Speed: 18700rpm ±10%
- Current: 0.15A
At stall:
- Torque: 5.82g.cm
- Current: 0.56A
- Direction of rotation: CW (clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)

End play: 0.05 to 0.35mm

Operating temperature: -10 to 60°C

Customized data requirements are welcomed

Suitable for precision meters and toys

No load:

On load:

At stall:

Torque: 5.82g.cm
Current: 0.56A
Direction of rotation: CW (clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)

Speed: 23,800rpm ±10%

Current: 0.04A

Torque: 1.25g.cm

Speed: 18700rpm ±10%

Current: 0.15A

Torque: 5.82g.cm

Current: 0.56A

Direction of rotation: CW (clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)
