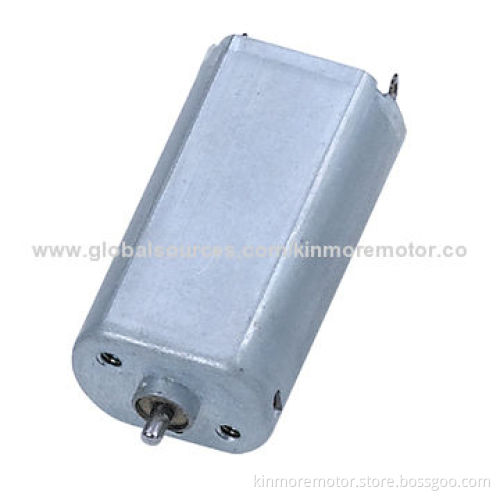

Micro DC motor, 24V with metal end cap for toys and CD/DVD player
  • Micro DC motor, 24V with metal end cap for toys and CD/DVD player
Micro DC motor, 24V with metal end cap for toys and CD/DVD player

Micro DC motor, 24V with metal end cap for toys and CD/DVD player

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Features:
    • Permanent magnet
    • Carbon brush
    • Stainless steel shaft
    • Oil-impregnated bearing
  • Dimensions:
    • Diameter of the housing: 15.5mm
    • Length of the housing: 26.5mm
    • Width of the housing: 12mm
    • Diameter of the shaft: 1.5mm
  • Performances:
    • Voltages:
      • Operating voltages: 3.5-24.0V
      • Nominal voltage: 24V
    • No load:
      • Speed: 13,800rpm
      • Current: 0.03A
    • At maximum efficiency:
      • Speed: 9,200rpm
      • Current: 0.14A
      • Torque: 1.1mNm/11.2g.cm
      • Output: 1.06E
      • Stall torque: 3.33mNm/34g.cm
      • Stall current: 0.23A
  • Permanent magnet
  • Carbon brush
  • Stainless steel shaft
  • Oil-impregnated bearing
  • Diameter of the housing: 15.5mm
  • Length of the housing: 26.5mm
  • Width of the housing: 12mm
  • Diameter of the shaft: 1.5mm
  • Voltages:
    • Operating voltages: 3.5-24.0V
    • Nominal voltage: 24V
  • No load:
    • Speed: 13,800rpm
    • Current: 0.03A
  • At maximum efficiency:
    • Speed: 9,200rpm
    • Current: 0.14A
    • Torque: 1.1mNm/11.2g.cm
    • Output: 1.06E
    • Stall torque: 3.33mNm/34g.cm
    • Stall current: 0.23A
  • Operating voltages: 3.5-24.0V
  • Nominal voltage: 24V
  • Speed: 13,800rpm
  • Current: 0.03A
  • Speed: 9,200rpm
  • Current: 0.14A
  • Torque: 1.1mNm/11.2g.cm
  • Output: 1.06E
  • Stall torque: 3.33mNm/34g.cm
  • Stall current: 0.23A
