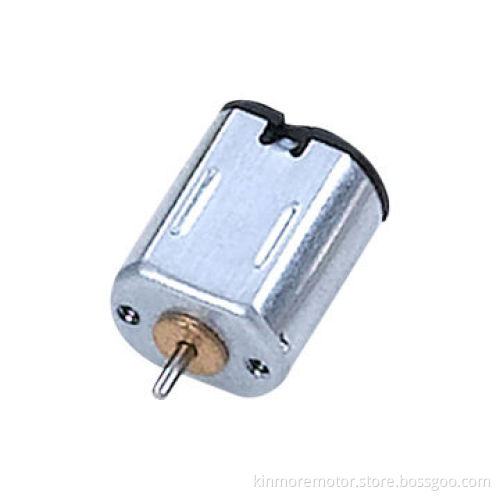

High speed 20000rpm micro dc motor
  • High speed 20000rpm micro dc motor
High speed 20000rpm micro dc motor

High speed 20000rpm micro dc motor

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Measuring conditions:
    • Rated voltage: 4.5   v DC
    • Motor position: to be measured with motor horizontally held
    • Environmental temperatures： +5℃～+35℃
    • Environmental humidity： 40%～85%rh
  • Electrical characteristics
    • (at initial stage after 30 seconds run-in):
    • At no load
      • Speed: 19800±10% rpm
    • Current: ≤60 mA
    • At on load
      • Torque" 1.4 g.cm
    • Speed: 15600±10% rpm
    • Current: ≤150 ma
    • At stall
    • Torque: ≥5g.cm
    • Current: ≤550 mA
    • Direction of rotation: CW (clockwise when viewing from the output shaft end with positive voltage applied to positive terminal.)
  • Mechanical characteristics:
    • End play: 0.05～0.35mm.
    • Operating temperatures:  -10℃ ~ +60 ℃
  • Rated voltage: 4.5   v DC
  • Motor position: to be measured with motor horizontally held
  • Environmental temperatures： +5℃～+35℃
  • Environmental humidity： 40%～85%rh
  • (at initial stage after 30 seconds run-in):
  • At no load
    • Speed: 19800±10% rpm
  • Current: ≤60 mA
  • At on load
    • Torque" 1.4 g.cm
  • Speed: 15600±10% rpm
  • Current: ≤150 ma
  • At stall
  • Torque: ≥5g.cm
  • Current: ≤550 mA
  • Direction of rotation: CW (clockwise when viewing from the output shaft end with positive voltage applied to positive terminal.)
  • Speed: 19800±10% rpm
  • Torque" 1.4 g.cm
  • End play: 0.05～0.35mm.
  • Operating temperatures:  -10℃ ~ +60 ℃
