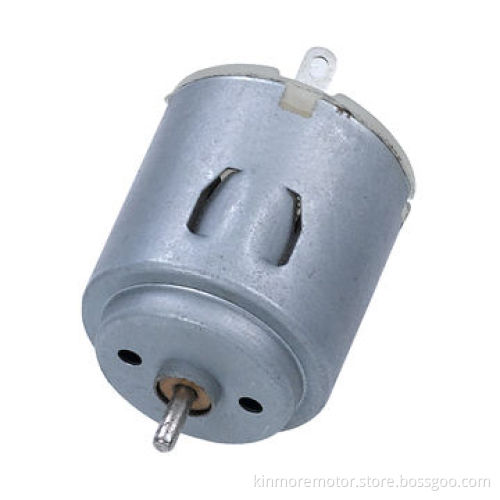

DC micro motor 24v with 8,000rpm no load speed for motorized toy

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Dimension of the motor:

Diameter of housing: 24mm
Length of housing: 27.1mm
Diameter of shaft: 2.0mm
Length of shaft: could be custom made

Specification of the motor:

Voltage:
- Operating range:6.0-24.0V
- Nominal voltage:24V
No load:
- Speed:8000rpm
- Current:0.028A
At Max. efficiency:
- Speed:6216rpm
- Current:0.1A
- Torque:24.5g.cm/2.4mNm
- Output:1.19W
Stall torque:110g.cm/10.8mNm
Stall current: 0.34A
Direction of rotation: CW/CCW

Remark: the above technical data are only for reference, we can customize them according to different requirements after evaluation

Features of the motors:

Plastic end cap
Oil-impregnated bearing
Carbon brush
Carbon steel shaft

Constructions of motors:

2-pole stator
Sr ferrite permanent magnet
3, 5, 7, 8,9,12 slots armature
Silicone-steel lamination with epoxy coating
High-carbon steel shaft
Cu-Ag alloys commutator
Copper-graphite brushes
Be-Cu leaf-brush commutating system
SECD round/flat shape housing
SECD end cap/PA66 + fiber end cap
Cylinder (Self-aligning) sintered bush
155 degree (Class F) copper wire

Learn more about us:

Our main products: Dia6~52mm DC Micro Motor and Gear Motor
Auto DC motor, electric motor, gear motor, DC motor, brush DC motor, spur Gear motor, micro motor, vibration motor and more
Products size range: Diameter: 6-52mm
DC voltage range: 1.5-42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1 RPM-30,000RPM
Stall torque: 5g.cm-30kg.cm
Applications: Home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio& visual equipment and more

Diameter of housing: 24mm

Length of housing: 27.1mm

Diameter of shaft: 2.0mm

Length of shaft: could be custom made

Voltage:

Operating range:6.0-24.0V
Nominal voltage:24V

No load:

Speed:8000rpm
Current:0.028A

At Max. efficiency:

Speed:6216rpm
Current:0.1A
Torque:24.5g.cm/2.4mNm
Output:1.19W

Stall torque:110g.cm/10.8mNm

Stall current: 0.34A

Direction of rotation: CW/CCW

Operating range:6.0-24.0V

Nominal voltage:24V

Speed:8000rpm

Current:0.028A

Speed:6216rpm

Current:0.1A

Torque:24.5g.cm/2.4mNm

Output:1.19W

Plastic end cap

Oil-impregnated bearing

Carbon brush

Carbon steel shaft

2-pole stator

Sr ferrite permanent magnet

3, 5, 7, 8,9,12 slots armature

Silicone-steel lamination with epoxy coating

High-carbon steel shaft

Cu-Ag alloys commutator

Copper-graphite brushes

Be-Cu leaf-brush commutating system

SECD round/flat shape housing

SECD end cap/PA66 + fiber end cap

Cylinder (Self-aligning) sintered bush

155 degree (Class F) copper wire

Our main products: Dia6~52mm DC Micro Motor and Gear Motor

Auto DC motor, electric motor, gear motor, DC motor, brush DC motor, spur Gear motor, micro motor, vibration motor and more

Products size range: Diameter: 6-52mm

DC voltage range: 1.5-42V

AC rectify: 100, 110, 220, 230, 240V and more

Speed range: 1 RPM-30,000RPM

Stall torque: 5g.cm-30kg.cm

Applications: Home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio& visual equipment and more
