24V DC Motor for Power and Garden Tools, Drill and Saws
  • 24V DC Motor for Power and Garden Tools, Drill and Saws
  • 24V DC Motor for Power and Garden Tools, Drill and Saws
24V DC Motor for Power and Garden Tools, Drill and Saws
24V DC Motor for Power and Garden Tools, Drill and Saws

24V DC Motor for Power and Garden Tools, Drill and Saws

Get Latest Price
Payment Type:
L/C, T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C, T/T
Product Description
Product Description
  • Specifications:
    • Dimensions:
      • Outer diameter: 51.3mm
      • Length: 69mm
      • Shaft diameter: 6.35mm
  • Technical performance data:
    • Measuring conditions:
      • Rated voltage: 24V DC
      • Motor position: to be measured with motor horizontallyheld
      • Environmental temperature: 25 ±10
      • Environmental humidity: 65 ±20% RH
    • Electrical characteristics:
      • At initial stage after 30 seconds run-in):
        • At no load
        • Speed: 2,500 ±10% rpm
        • Current: 0.19A (maximum 0.33A)
      • At max efficiency:
        • Torque: 596.9g.cm
        • Speed: 2,048 ±10% rpm
        • Current: 0.86A (maximum 1.55A)
      • At stall:
      • Torque: 3301g.cm
      • Current: 3.9A (maximum 7.02A)
  • Mechanical characteristics:

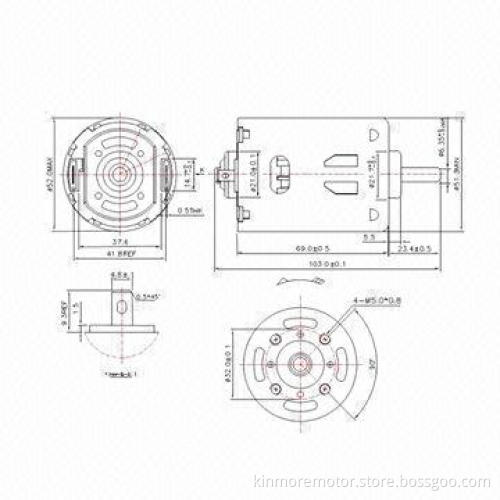

    • Dimension drawing: see outline
    • End play: 0.05 to 0.55mm (maximum)
    • Class F magnet wire
    • Operating temperature: -10 to +60
    • Customized specifications are welcomed
  • Dimensions:
    • Outer diameter: 51.3mm
    • Length: 69mm
    • Shaft diameter: 6.35mm
  • Outer diameter: 51.3mm
  • Length: 69mm
  • Shaft diameter: 6.35mm
  • Measuring conditions:
    • Rated voltage: 24V DC
    • Motor position: to be measured with motor horizontallyheld
    • Environmental temperature: 25 ±10
    • Environmental humidity: 65 ±20% RH
  • Electrical characteristics:
    • At initial stage after 30 seconds run-in):
      • At no load
      • Speed: 2,500 ±10% rpm
      • Current: 0.19A (maximum 0.33A)
    • At max efficiency:
      • Torque: 596.9g.cm
      • Speed: 2,048 ±10% rpm
      • Current: 0.86A (maximum 1.55A)
    • At stall:
    • Torque: 3301g.cm
    • Current: 3.9A (maximum 7.02A)
  • Rated voltage: 24V DC
  • Motor position: to be measured with motor horizontallyheld
  • Environmental temperature: 25 ±10
  • Environmental humidity: 65 ±20% RH
  • At initial stage after 30 seconds run-in):
    • At no load
    • Speed: 2,500 ±10% rpm
    • Current: 0.19A (maximum 0.33A)
  • At max efficiency:
    • Torque: 596.9g.cm
    • Speed: 2,048 ±10% rpm
    • Current: 0.86A (maximum 1.55A)
  • At stall:
  • Torque: 3301g.cm
  • Current: 3.9A (maximum 7.02A)
  • At no load
  • Speed: 2,500 ±10% rpm
  • Current: 0.19A (maximum 0.33A)
  • Torque: 596.9g.cm
  • Speed: 2,048 ±10% rpm
  • Current: 0.86A (maximum 1.55A)
  • Dimension drawing: see outline
  • End play: 0.05 to 0.55mm (maximum)
  • Class F magnet wire
  • Operating temperature: -10 to +60
  • Customized specifications are welcomed
  • Products range:
  • Main products: motor, gear, DC, brush DC, spur gear, micro andvibration motors
  • Typical applications:
  • Used for power an garden tools, drills, circular saws, stringtrimmers, fitness apparatus and cordless tools
  • Customization options:
  • OEM and customization are accepted
  • Compliant with the RoHS Directive
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High-degrees of protection
  • Small mechanical tim
