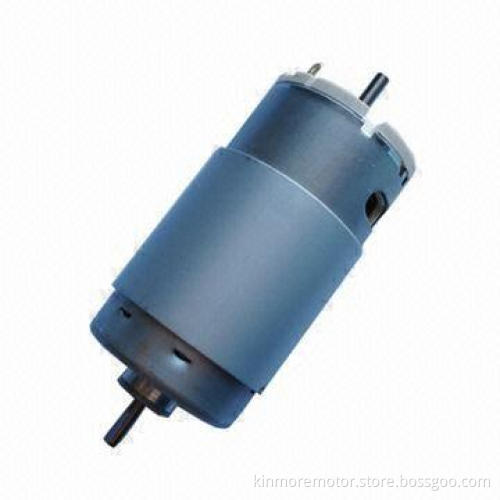

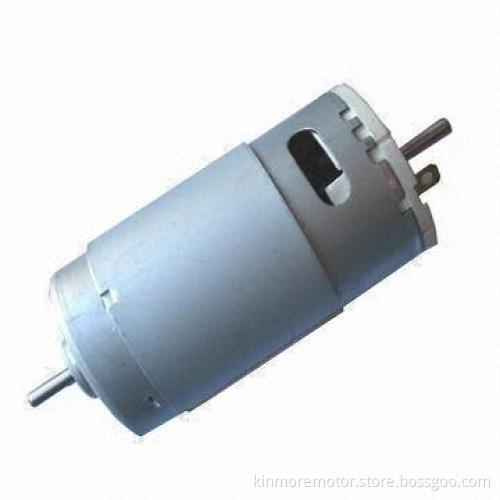

230V DC Motor, Suitable for Vacuum Cleaners/Handy Blenders/Coreless Drills/Screwdrivers/Washer Pumps
  • 230V DC Motor, Suitable for Vacuum Cleaners/Handy Blenders/Coreless Drills/Screwdrivers/Washer Pumps
  • 230V DC Motor, Suitable for Vacuum Cleaners/Handy Blenders/Coreless Drills/Screwdrivers/Washer Pumps
230V DC Motor, Suitable for Vacuum Cleaners/Handy Blenders/Coreless Drills/Screwdrivers/Washer Pumps
230V DC Motor, Suitable for Vacuum Cleaners/Handy Blenders/Coreless Drills/Screwdrivers/Washer Pumps

230V DC Motor, Suitable for Vacuum Cleaners/Handy Blenders/Coreless Drills/Screwdrivers/Washer Pumps

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Motor housing (D x L): 37.8 x 67mm
    • Material: SECD
    • End cap: plastic
    • Shaft: Ø3.175mm carbon steel (nickel-coated)
    • Way of commutation: carbon gauge brush system
    • Structure: 2-pole stator and 12-slot armature
    • Inside cooling fan
    • Insulation: class F magnet wire
    • Rotation: CW, CCW and reversible
    • EMC/EMI suppression: (optional)
    • Ball bearing on driving sides are available
  • Technical performance data:
    • Rated voltage: 230V DC
    • No loading:
      • Speed: 8,900rpm
      • Current: 0.02A
    • At maximum efficiency:
      • Speed: 7,784pm
      • Current: 0.15A
      • Torque: 31mNm
      • Power: 24.13W
    • At stall:
      • Torque: 247mNm
      • Current: 1.07A
    • Options: shaft length, technical data like voltage, speed,torque, optional EMI and EMC suppression
  • Typical applications:
    • Vacuum cleaners, handy blenders, coreless drills, screwdrivers,washer pumps
  • Motor housing (D x L): 37.8 x 67mm
  • Material: SECD
  • End cap: plastic
  • Shaft: Ø3.175mm carbon steel (nickel-coated)
  • Way of commutation: carbon gauge brush system
  • Structure: 2-pole stator and 12-slot armature
  • Inside cooling fan
  • Insulation: class F magnet wire
  • Rotation: CW, CCW and reversible
  • EMC/EMI suppression: (optional)
  • Ball bearing on driving sides are available
  • Rated voltage: 230V DC
  • No loading:
    • Speed: 8,900rpm
    • Current: 0.02A
  • At maximum efficiency:
    • Speed: 7,784pm
    • Current: 0.15A
    • Torque: 31mNm
    • Power: 24.13W
  • At stall:
    • Torque: 247mNm
    • Current: 1.07A
  • Options: shaft length, technical data like voltage, speed,torque, optional EMI and EMC suppression
  • Speed: 8,900rpm
  • Current: 0.02A
  • Speed: 7,784pm
  • Current: 0.15A
  • Torque: 31mNm
  • Power: 24.13W
  • Torque: 247mNm
  • Current: 1.07A
  • Vacuum cleaners, handy blenders, coreless drills, screwdrivers,washer pumps
