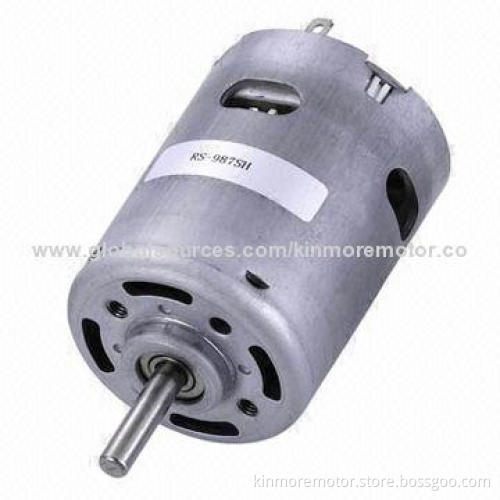

12V High-torque Low-speed DC Motor with Dual-shaft for Power and Garden Tools, Drill and Saws
  • 12V High-torque Low-speed DC Motor with Dual-shaft for Power and Garden Tools, Drill and Saws
  • 12V High-torque Low-speed DC Motor with Dual-shaft for Power and Garden Tools, Drill and Saws
12V High-torque Low-speed DC Motor with Dual-shaft for Power and Garden Tools, Drill and Saws
12V High-torque Low-speed DC Motor with Dual-shaft for Power and Garden Tools, Drill and Saws

12V High-torque Low-speed DC Motor with Dual-shaft for Power and Garden Tools, Drill and Saws

Get Latest Price
Payment Type:
L/C, T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C, T/T
Product Description
Product Description
  • Specifications:
    • Dimensions:
      • Outer diameter: 51.3mm
      • Length: 69mm
      • Shaft diameter: 6.35mm
    • Technical performance data:
    • Rated voltage: 12V DC
    • Motor position: to be measured with motor horizontally held
    • Environmental temperature: 25 ±10
    • Environmental humidity: 65 ±20% RH
  • Electrical characteristics:
    • At initial stage after 30 seconds run-in):
    • At no load
    • Speed: 3.100 ±10% rpm
    • Current: 0.53A (maximum 0.90A)
    • At maximum efficiency:
      • Torque: 680.8g.cm
      • Speed: 2,536 ±10%rpm
      • Current: 2.38A (maximum 4.29A)
    • At stall:
      • Torque: 3,741.2g.cm
      • Current: 10.71A (maximum 19.28A)
  • Mechanical characteristics:

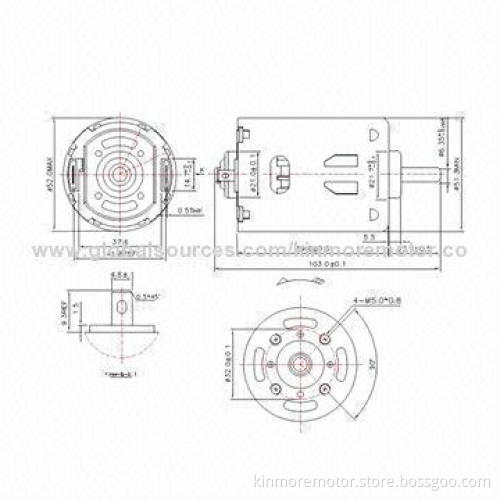

    • Dimensions drawing: see outline
    • End play: 0.05 to 0.55mm (maximum)
    • Class F magnet wire
    • Operating temperature: -10 to +60
    • Customized specifications are welcomed
  • Products range:
    • Main products: motor, gear, DC, brush DC, spur gear, micro and vibration motors
  • Typical applications:
    • Used for power an garden tools, drills, circular saws, string trimmers, fitness apparatus and cordless tools
  • Customization options:
    • OEM and customization are accepted
    • Compliant with the RoHS Directive
    • Ball bearing in output side
    • EMI suppression
    • Low-cogging design
    • High-degrees of protection
    • Small mechanical Tim
  • Dimensions:
    • Outer diameter: 51.3mm
    • Length: 69mm
    • Shaft diameter: 6.35mm
  • Technical performance data:
  • Rated voltage: 12V DC
  • Motor position: to be measured with motor horizontally held
  • Environmental temperature: 25 ±10
  • Environmental humidity: 65 ±20% RH
  • Outer diameter: 51.3mm
  • Length: 69mm
  • Shaft diameter: 6.35mm
  • At initial stage after 30 seconds run-in):
  • At no load
  • Speed: 3.100 ±10% rpm
  • Current: 0.53A (maximum 0.90A)
  • At maximum efficiency:
    • Torque: 680.8g.cm
    • Speed: 2,536 ±10%rpm
    • Current: 2.38A (maximum 4.29A)
  • At stall:
    • Torque: 3,741.2g.cm
    • Current: 10.71A (maximum 19.28A)
  • Torque: 680.8g.cm
  • Speed: 2,536 ±10%rpm
  • Current: 2.38A (maximum 4.29A)
  • Torque: 3,741.2g.cm
  • Current: 10.71A (maximum 19.28A)
  • Dimensions drawing: see outline
  • End play: 0.05 to 0.55mm (maximum)
  • Class F magnet wire
  • Operating temperature: -10 to +60
  • Customized specifications are welcomed
  • Main products: motor, gear, DC, brush DC, spur gear, micro and vibration motors
  • Used for power an garden tools, drills, circular saws, string trimmers, fitness apparatus and cordless tools
  • OEM and customization are accepted
  • Compliant with the RoHS Directive
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High-degrees of protection
  • Small mechanical Tim
