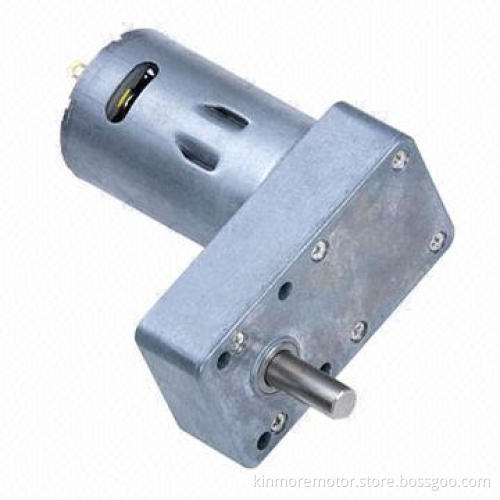

24V DC Geared Motor for Vending Machines and Dispenser with Parallel Shaft, High-torque

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Gears: spur metal gears

Way of commutation: carbon brush system

Shaft diameter: parallel 8mm

Gearbox dimensions (W x L x H): 40 x 70 x 20mm (die-castingzinc)

DC motor size (D x L): 35.8 x 57mm

Gear ratios: 1/14.6, 1/29, 1/37, 1/189, 1/244, 1/158, 1/531,1/554, 1/609, 1/1,483

Nominal voltage: 24V

No load speed: 24rpm

No load current: 0.15A (maximum)

On load speed: 21rpm

On load torque: 20.0kg/cm

On load current: 0.45A (maximum)

Customization Options:

OEM and customization are available

ROHS Directive-compliant

Ball bearing in output side

EMI suppression

Low-cogging design

High-degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low-noise design

Fast response (small Tm)

High-torque at a low-speed

PTC protection

Phenolic resin base commutator

Epoxy coating armature

Lightweight and long lifespan
