6V DC Geared Motor with High Torque, Low-speed for Vending/Auto Door/RC Model/Shutter

6V DC Geared Motor with High Torque, Low-speed for Vending/Auto Door/RC Model/Shutter

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Bi-direction
Metal or carbon brush DC motor
Gearbox diameter: 25mm (material: die-cast zinc)
Shaft (diameter): 4mm inline carbon steel shaft with customD-shape and length
DC motor (D x L): 24.4 x 18mm
Rotation: CCW/CW, reversible
Gears: spur metal or plastic gears
Lubrication: grease filled
Way of commutation: carbon or metal brushes
Reduction ratio: 1/11,1/15, 1/20, 1/26, 1/34, 1/45, 1/51, 1/57,1/61, 1/75, 1/85, 1/98,1/112, 1/125, 1/165, 1/217, 1/274, 1/362,1/478, 1/545, 1/796, 1/603 and 1/1,051

Technical performance data:

Nominal voltage: 6V
Ratio: 1/481
No load
Speed: 6.1rpm
Current: 0.014A (0.028A maximum)

On load:

Speed: 4.2rpm
Torque: 2kg/cm
Current: 0.075A (0.11A maximum)

Options: shaft length, performance (voltage, torque and speed)and gear ratio

Bi-direction

Metal or carbon brush DC motor

Gearbox diameter: 25mm (material: die-cast zinc)

Shaft (diameter): 4mm inline carbon steel shaft with customD-shape and length

DC motor (D x L): 24.4 x 18mm

Rotation: CCW/CW, reversible

Gears: spur metal or plastic gears

Lubrication: grease filled

Way of commutation: carbon or metal brushes

Reduction ratio: 1/11,1/15, 1/20, 1/26, 1/34, 1/45, 1/51, 1/57,1/61, 1/75, 1/85, 1/98,1/112, 1/125, 1/165, 1/217, 1/274, 1/362,1/478, 1/545, 1/796, 1/603 and 1/1,051

Nominal voltage: 6V

Ratio: 1/481

No load

Speed: 6.1rpm

Current: 0.014A (0.028A maximum)

Speed: 4.2rpm

Torque: 2kg/cm

Current: 0.075A (0.11A maximum)

Learn more about us:

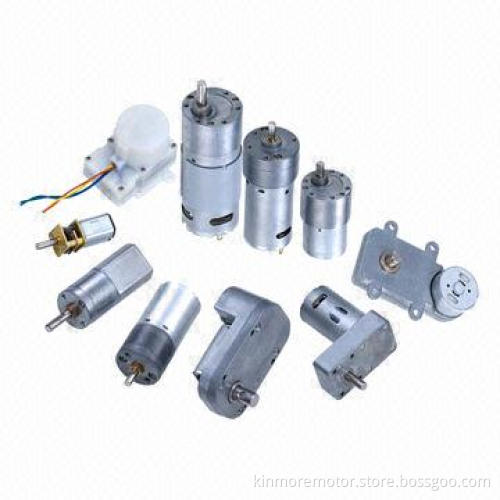

Our main products: Ø6-52mm DC micro motor and gearmotor

Auto dc motor, electric motor, gear motor, DC motor, brush DCmotor, spur gear motor, micro motor, vibration motor and more

Products size range: (diameter) 6-52mm

DC voltage range: 1.5-42V

AC rectify: 100V, 110V, 220V, 230V, 240V and more

Speed range: 1 RPM-30,000rpm

Stall torque: 5g.cm-30kg.cm

Applications: home appliance, power tools, toys and model,precision instrument, office equipment, personal care product,automotive, audio, visual equipment and more
