12V Dual Shaft High Torque DC Reduction Gear Motor for Vending Machine, Garden Tool, Vacuum Cleaner

12V Dual Shaft High Torque DC Reduction Gear Motor for Vending Machine, Garden Tool, Vacuum Cleaner

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

High torque motor(KM-42F3540)

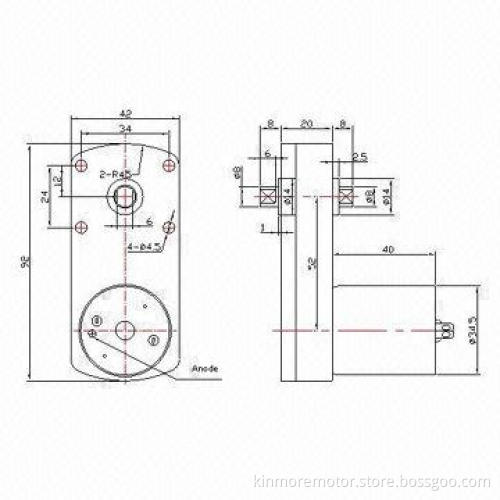

Dimensions:

Gearbox (L x W x H): 32 x 42 x 20mm
Shaft diameter: 8mm
DC motor (D x L): 34.5 x 40mm

Technical data:

Voltage: 12V or as requested

Reduction ratio: 1/37, 1/189, 1/244, 1/554

No load speed: 9.5rpm

On load speed: 8.3rpmpm

On load current: 0.676A

On load torque: 40Kg.cm

Product size range: Ø6 to 66mm

Voltage range: 1.5 to 42V DC

AC rectify: 100, 110, 220, 230 and 240V

Speed range: 1 to 30,000rpm

Stall torque: 5 to 30kg

Gearbox (L x W x H): 32 x 42 x 20mm

Shaft diameter: 8mm

DC motor (D x L): 34.5 x 40mm

Constructions of motor:

Two-pole stator

SR ferrite permanent magnet

3, 5, 7, 8, 9, and 12 slots armature

Silicon-steel lamination with epoxy coating

High-carbon steel shaft

Cu-Ag alloys commentator

Copper-graphite brushes

Cu leaf brush commutating system

SECD round/flat-shaped housing

SECD end cap/PA66 + fiber end cap

Cylinder (self-aligning) sintered bush

155 degrees (class F) copper wire

OEM orders are welcome

Compliant with the RoHS Directive

Ball bearing in output side

EMI suppression

Low-cogging design

High degree of protection

Small mechanical time constant

Resists intense vibrations

Zero axial gaps

Low noise design

Fast response (small Tm)

High torque at a low speed
