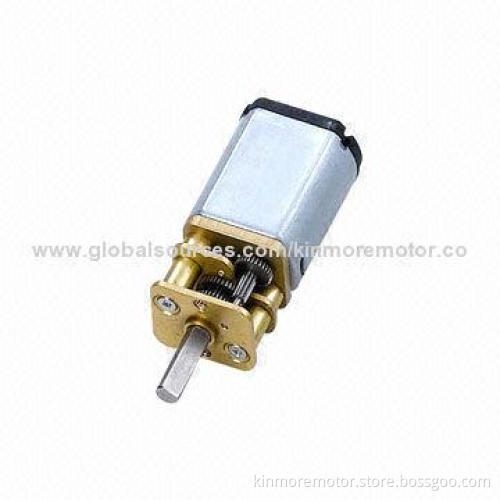

China Manufacturer 3V DC Square Gear Motor with 13mm Gearbox for Electric Locks, Cordless Drill
  • China Manufacturer 3V DC Square Gear Motor with 13mm Gearbox for Electric Locks, Cordless Drill
China Manufacturer 3V DC Square Gear Motor with 13mm Gearbox for Electric Locks, Cordless Drill

China Manufacturer 3V DC Square Gear Motor with 13mm Gearbox for Electric Locks, Cordless Drill

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Material: brass
    • Gearbox size (W x H x L): 13 x 12 x 11mm
    • Shaft: Ø3mm inline carbon steel shaft with custom D-shaped and length
    • DC motor (D x F x L): 15.5 x 12 x 18.6mm
    • Rotation: CCW/CW, reversible
    • Gears: spur metal gears
    • Lubrication: grease filled
    • Way of commutation: metal or carbon brush
    • Reduction ratio: 1/3, 1/63
  • Performance:
    • Ratio: 35
    • Voltage: 3V DC
    • At no load:
      • Speed: 485rpm
      • Current: ≤230mA
    • At on load :
      • Torque: 85g.cm
      • Speed: 415rpm ±10%
      • Current: ≤560A
    • At stall:
      • Torque: ≥450g.cm
      • Current: ≤2.5A
  • Direction of rotation: CW (clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)
  • Mechanical characteristics:
    • Dimension drawing: See<outline>
    • End play: 0.05-0.45mm
    • Operating temperature: -10 - +60°C
  • Options: technical data like voltage, speed, torque, shaft direction, shaft length, D-shaped size and length
  • Material: brass
  • Gearbox size (W x H x L): 13 x 12 x 11mm
  • Shaft: Ø3mm inline carbon steel shaft with custom D-shaped and length
  • DC motor (D x F x L): 15.5 x 12 x 18.6mm
  • Rotation: CCW/CW, reversible
  • Gears: spur metal gears
  • Lubrication: grease filled
  • Way of commutation: metal or carbon brush
  • Reduction ratio: 1/3, 1/63
  • Ratio: 35
  • Voltage: 3V DC
  • At no load:
    • Speed: 485rpm
    • Current: ≤230mA
  • At on load :
    • Torque: 85g.cm
    • Speed: 415rpm ±10%
    • Current: ≤560A
  • At stall:
    • Torque: ≥450g.cm
    • Current: ≤2.5A
  • Speed: 485rpm
  • Current: ≤230mA
  • Torque: 85g.cm
  • Speed: 415rpm ±10%
  • Current: ≤560A
  • Torque: ≥450g.cm
  • Current: ≤2.5A
  • Dimension drawing: See<outline>
  • End play: 0.05-0.45mm
  • Operating temperature: -10 - +60°C
