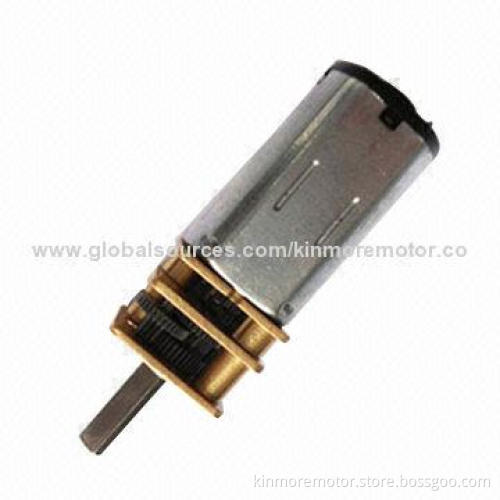

2014 China Factory Price 6V 100rpm Low-noise Micro DC Motor with 12mm Gear Box
  • 2014 China Factory Price 6V 100rpm Low-noise Micro DC Motor with 12mm Gear Box
2014 China Factory Price 6V 100rpm Low-noise Micro DC Motor with 12mm Gear Box

2014 China Factory Price 6V 100rpm Low-noise Micro DC Motor with 12mm Gear Box

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Metal gears and gearbox
  • Diameter: 3mm shaft
  • Ratio: 210:1
  • Metal brushes
  • Measuring conditions:
    • Rated voltage: 6V DC
    • Motor position: to be measured with motor horizontally held
    • Environmental temperature: +5 to +35°C
    • Environmental humidity: 40 to 85%RH
    • Electrical characteristics (at initial stage after 30 seconds run-in):
  • No loading:
    • Speed: 197 ±10%rpm
    • Current: ≤380mA
  • On loading:
    • Torque: 2910g.cm
    • Speed: 100 ±10%rpm
    • Current: ≤3300mA
  • Direction of rotation: CW (clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)
  • Mechanical characteristics:
    • End play: 0.05 to 0.45mm
    • Operating temperature: -10 to 60°C
  • Suitable for electric locks, robots, cordless drills, foot massagers and RC models
  • Rated voltage: 6V DC
  • Motor position: to be measured with motor horizontally held
  • Environmental temperature: +5 to +35°C
  • Environmental humidity: 40 to 85%RH
  • Electrical characteristics (at initial stage after 30 seconds run-in):
  • Speed: 197 ±10%rpm
  • Current: ≤380mA
  • Torque: 2910g.cm
  • Speed: 100 ±10%rpm
  • Current: ≤3300mA
  • End play: 0.05 to 0.45mm
  • Operating temperature: -10 to 60°C
