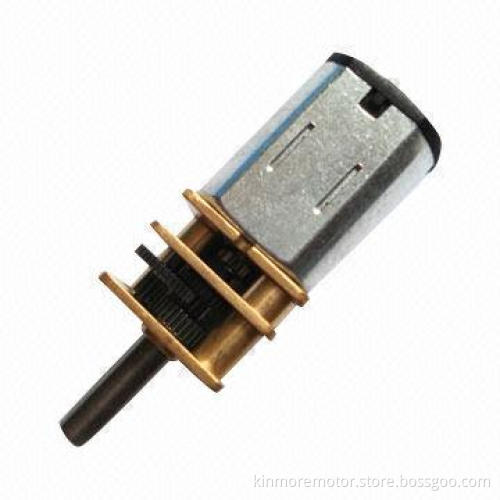

Famous Kinmore Brand 60RPM Gear Motors, DC 6V With 12mm Gear Reduction
  • Famous Kinmore Brand 60RPM Gear Motors, DC 6V With 12mm Gear Reduction
Famous Kinmore Brand 60RPM Gear Motors, DC 6V With 12mm Gear Reduction

Famous Kinmore Brand 60RPM Gear Motors, DC 6V With 12mm Gear Reduction

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Specifications:
    • Gearbox size (W x H x L): 12 x 10 x 9mm
    • Material: brass
    • Shaft: 3mm inline carbon steel shaft with customized D-shapeand length
    • DC motor (Ø x flat x L): 12 x 10 x 15mm
    • Rotation: CCW/CW, reversible
    • Gear: spur metal gears
    • Lubrication: grease filled
    • Way of commutation: metal or carbon brush
    • Reduction ratio: 1/10, 1/20, 1/30, 1/50, 1/100, 1/110, 1/150,1/210, 1/226, 1/298, 1/380, 1/1,000
  • Performance:
    • Ratio: 1/50
    • Measuring conditions:
      • Rated voltage: 6V DC
      • Motor position: to be measured with motor horizontallyheld
      • Environmental temperatures: 5 to 35
      • Environmental humidity range: 40 to 85% RH
    • Electrical characteristics (at initial stage after 30 secondsrun-in):
      • At no load:
        • Speed: 62rpm ±10%
        • Current: ≤50mA
      • At on load:
        • Torque: 500g.cm
        • Speed: 52rpm ±10%
      • Direction of rotation: CW/CCW
    • Mechanical characteristics:
      • Dimensions drawing: see
      • End play: 0.05 to 0.45mm
      • Operating temperatures: -10 to 60°C
    • Customization options:
      • OEM orders and customization are available
      • RoHS Directive-compliant
      • Ball bearing in output side
      • EMI suppression
      • Low-cogging design
      • High-degree of protection
      • Small mechanical time constant
      • Resist intense vibrations
      • Zero axial gap
      • Low-noise design
      • Fast response (small Tm)
      • High-torque at a low-speed
      • PTC protection
      • Phenolic resin base commutator
      • Epoxy coating armature
      • Lightweight and long lifespan
  • More information:
    • Our main products (diameter): 6 to 52mm DC micro motor and gearmotor
    • Auto DC motor, electric motor, gear motor, DC motor, brush DCmotor, spur gear motor, micro motor, vibration motor and more
    • Products size range (diameter): 6-52mm
    • DC voltage range: 1.5-42V
    • AC rectify: 100, 110, 220, 230, 240V and more
  • Gearbox size (W x H x L): 12 x 10 x 9mm
  • Material: brass
  • Shaft: 3mm inline carbon steel shaft with customized D-shapeand length
  • DC motor (Ø x flat x L): 12 x 10 x 15mm
  • Rotation: CCW/CW, reversible
  • Gear: spur metal gears
  • Lubrication: grease filled
  • Way of commutation: metal or carbon brush
  • Reduction ratio: 1/10, 1/20, 1/30, 1/50, 1/100, 1/110, 1/150,1/210, 1/226, 1/298, 1/380, 1/1,000
  • Ratio: 1/50
  • Measuring conditions:
    • Rated voltage: 6V DC
    • Motor position: to be measured with motor horizontallyheld
    • Environmental temperatures: 5 to 35
    • Environmental humidity range: 40 to 85% RH
  • Electrical characteristics (at initial stage after 30 secondsrun-in):
    • At no load:
      • Speed: 62rpm ±10%
      • Current: ≤50mA
    • At on load:
      • Torque: 500g.cm
      • Speed: 52rpm ±10%
    • Direction of rotation: CW/CCW
  • Mechanical characteristics:
    • Dimensions drawing: see
    • End play: 0.05 to 0.45mm
    • Operating temperatures: -10 to 60°C
  • Customization options:
    • OEM orders and customization are available
    • RoHS Directive-compliant
    • Ball bearing in output side
    • EMI suppression
    • Low-cogging design
    • High-degree of protection
    • Small mechanical time constant
    • Resist intense vibrations
    • Zero axial gap
    • Low-noise design
    • Fast response (small Tm)
    • High-torque at a low-speed
    • PTC protection
    • Phenolic resin base commutator
    • Epoxy coating armature
    • Lightweight and long lifespan
  • Rated voltage: 6V DC
  • Motor position: to be measured with motor horizontallyheld
  • Environmental temperatures: 5 to 35
  • Environmental humidity range: 40 to 85% RH
  • At no load:
    • Speed: 62rpm ±10%
    • Current: ≤50mA
  • At on load:
    • Torque: 500g.cm
    • Speed: 52rpm ±10%
  • Direction of rotation: CW/CCW
  • Speed: 62rpm ±10%
  • Current: ≤50mA
  • Torque: 500g.cm
  • Speed: 52rpm ±10%
  • Dimensions drawing: see
  • End play: 0.05 to 0.45mm
  • Operating temperatures: -10 to 60°C
  • OEM orders and customization are available
  • RoHS Directive-compliant
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High-degree of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low-noise design
  • Fast response (small Tm)
  • High-torque at a low-speed
  • PTC protection
  • Phenolic resin base commutator
  • Epoxy coating armature
  • Lightweight and long lifespan
  • Our main products (diameter): 6 to 52mm DC micro motor and gearmotor
  • Auto DC motor, electric motor, gear motor, DC motor, brush DCmotor, spur gear motor, micro motor, vibration motor and more
  • Products size range (diameter): 6-52mm
  • DC voltage range: 1.5-42V
  • AC rectify: 100, 110, 220, 230, 240V and more
