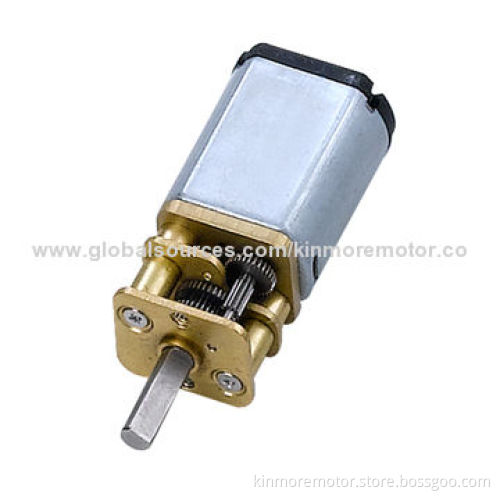

3V DC geared motor with high torque low rpm for robot
  • 3V DC geared motor with high torque low rpm for robot
3V DC geared motor with high torque low rpm for robot

3V DC geared motor with high torque low rpm for robot

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • The dimensions:
    • Gearbox dimension: Dia.13 * 12mm
    • Gearbox length: 11mm
    • The diameter of the motor:5.5mm
    • The length of motor housing:8.6mm
    • The diameter of shaft: 3mm
  • Technical data:
    • Reduction ratio: 1:150
    • Voltages:
      • Operating range: 2.0-4.0V
      • Nominal Voltage: 3.0V
    • No load:
      • Current: 0.15A
      • Speed: 118rpm
    • On load:
      • Current: 0.47A
      • Torque: 0.35kg.cm
      • Speed: 95rpm
      • Weight: 15g
    • Note: All of the technical data could be custom made according to your requirements
  • Features:
    • Bi-direction
    • Metal brush DC motor
    • Spur gears
    • Copper plate gear case
    • Sleeve bronze bushing
  • Typical applications:
    • Coffee machine
    • Cordless drill
    • Robot
    • Electric lock
    • Video/camera
  • Gearbox dimension: Dia.13 * 12mm
  • Gearbox length: 11mm
  • The diameter of the motor:5.5mm
  • The length of motor housing:8.6mm
  • The diameter of shaft: 3mm
  • Reduction ratio: 1:150
  • Voltages:
    • Operating range: 2.0-4.0V
    • Nominal Voltage: 3.0V
  • No load:
    • Current: 0.15A
    • Speed: 118rpm
  • On load:
    • Current: 0.47A
    • Torque: 0.35kg.cm
    • Speed: 95rpm
    • Weight: 15g
  • Note: All of the technical data could be custom made according to your requirements
  • Operating range: 2.0-4.0V
  • Nominal Voltage: 3.0V
  • Current: 0.15A
  • Speed: 118rpm
  • Current: 0.47A
  • Torque: 0.35kg.cm
  • Speed: 95rpm
  • Weight: 15g
  • Bi-direction
  • Metal brush DC motor
  • Spur gears
  • Copper plate gear case
  • Sleeve bronze bushing
  • Coffee machine
  • Cordless drill
  • Robot
  • Electric lock
  • Video/camera
