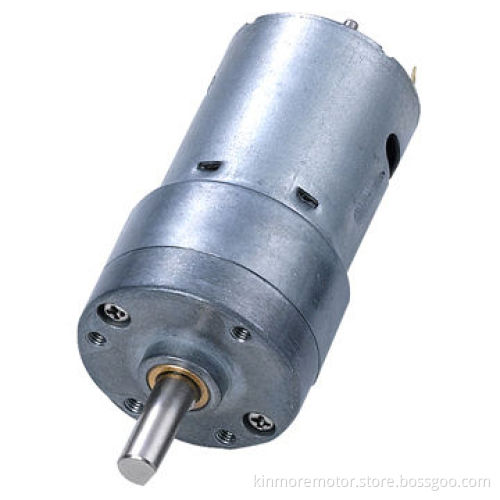

12V DC Gear Motor, Speed Reducer for Car Readers, with 32mm diameter Gearbox

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Gearbox (diameter): 32mm (material: die-casting zinc)

Shaft: (diameter) 6mm inline carbon steel shaft with customD-shape and length

DC motor (diameter x L): 27.7 x 32.6mm

Rotation: CCW/CW, reversible

Gears: spur metal gears

Lubrication: grease filled

Way of commutation: carbon brush

Reduction ratios are available: 1/15, 1/17.3, 1/40, 1/46, 1/51.8, 1/105, 1/136, 1/155, 1/278,1/316, 1/409, 1/466, 1/732, 1/1,228, 1/1.397.3

Ratio: 1/17.3

Voltage: 12V DC

At no load:
Speed: 557.4rpm
Current: 0.54A (maximum)

At 0.9kg.cm load:

Speed: 444.4rpm
Current: 1.125A (maximum)
Quantity: 96 pieces
Gross weight: 13.7kg
Dimensions: 40.5 x 28.8 x 24.5cm

Customization options:

OEM and customized orders are accepted
Compliant with the RoHS Directive
Ball bearing in output side
EMI suppression
Low-cogging design
High degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low noise design
Fast response (small Tm)
High torque at a low speed
PTC protection
Penolic resin base commutator
Epoxy coating armature
Lightweight and long life

At no load:

Speed: 557.4rpm

Current: 0.54A (maximum)

Speed: 444.4rpm

Current: 1.125A (maximum)

Quantity: 96 pieces

Gross weight: 13.7kg

Dimensions: 40.5 x 28.8 x 24.5cm

OEM and customized orders are accepted

Compliant with the RoHS Directive

Ball bearing in output side

EMI suppression

Low-cogging design

High degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low noise design

Fast response (small Tm)

High torque at a low speed

PTC protection

Penolic resin base commutator

Epoxy coating armature

Lightweight and long life
