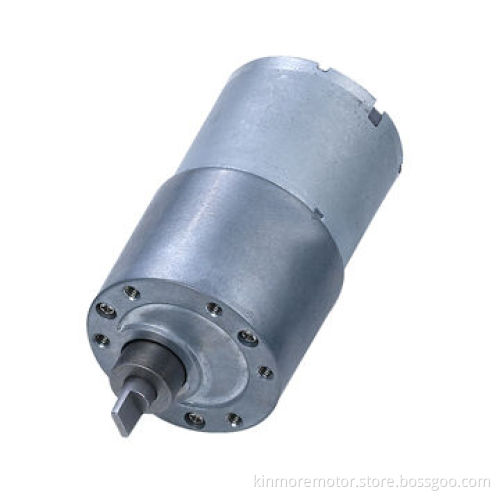

24 Volt Geared Motor, Suitable for Vending Machines and Paper Tool Machines
  • 24 Volt Geared Motor, Suitable for Vending Machines and Paper Tool Machines
24 Volt Geared Motor, Suitable for Vending Machines and Paper Tool Machines

24 Volt Geared Motor, Suitable for Vending Machines and Paper Tool Machines

Get Latest Price
Payment Type:
T/T and L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T and L/C
Product Description
Product Description
  • Specifications:
    • Dimensions:
      • Gearbox: Ø37mm (length varies with ratio)
      • Shaft diameter: 6mm with custom made D-shaped and length
      • DC motor size DXL: 33 x 22.8mm
    • Direction of rotation: CCW or CW
    • Way of commutation: carbon brush
    • Reduction ratio: 1/10, 1/20, 1/30, 1/50, 1/60, 1/70, 1/90,1/150, 1/180, 1/210, 1/270, 1/280, 1/360, 1/450, 1/540, 1/630,1/810 and 1/1084
  • Technical performance data:
    • Nominal voltage: 24V
    • No load:
      • No load speed: 310rpm
      • No load current: 0.02A
    • On load:
      • Rated speed: 270rpm
      • Rated torque: 0.09kg/cm
      • On load current: 0.03A
    • Above performance can be customized, your own data is warmly welcomed for our engineer evaluation
    • Suitable for vending machines and paper towel machines
  • Package information:
    • Quantity: 80 pieces
    • Net weight: 14.48kg
    • Gross weight: 15.35kg
    • Size: 40 x 28.8 x 24.5cm
  • Inspection to guarantee reliable quality:
    • Inspection occurs throughout the whole process flow
    • Unitizing hexagon CMM, X-ray spectrometer, MEA motor performance testing system
    • Tension tester
    • Torque tester
    • Motor performance testing system and other geometrical testing equipment
    • We perform a battery of inspections from tooling, material to finished products as below
      • Tooling inspection
      • Material lot acceptance inspection
      • Material life test
      • First article inspection
      • Operator self-inspection
      • Random inspection
      • 100% inspection to key process and motor electric performance
      • Final inspection
      • Outgoing inspection
  • Dimensions:
    • Gearbox: Ø37mm (length varies with ratio)
    • Shaft diameter: 6mm with custom made D-shaped and length
    • DC motor size DXL: 33 x 22.8mm
  • Direction of rotation: CCW or CW
  • Way of commutation: carbon brush
  • Reduction ratio: 1/10, 1/20, 1/30, 1/50, 1/60, 1/70, 1/90,1/150, 1/180, 1/210, 1/270, 1/280, 1/360, 1/450, 1/540, 1/630,1/810 and 1/1084
  • Gearbox: Ø37mm (length varies with ratio)
  • Shaft diameter: 6mm with custom made D-shaped and length
  • DC motor size DXL: 33 x 22.8mm
  • Nominal voltage: 24V
  • No load:
    • No load speed: 310rpm
    • No load current: 0.02A
  • On load:
    • Rated speed: 270rpm
    • Rated torque: 0.09kg/cm
    • On load current: 0.03A
  • Above performance can be customized, your own data is warmly welcomed for our engineer evaluation
  • Suitable for vending machines and paper towel machines
  • No load speed: 310rpm
  • No load current: 0.02A
  • Rated speed: 270rpm
  • Rated torque: 0.09kg/cm
  • On load current: 0.03A
  • Quantity: 80 pieces
  • Net weight: 14.48kg
  • Gross weight: 15.35kg
  • Size: 40 x 28.8 x 24.5cm
  • Inspection occurs throughout the whole process flow
  • Unitizing hexagon CMM, X-ray spectrometer, MEA motor performance testing system
  • Tension tester
  • Torque tester
  • Motor performance testing system and other geometrical testing equipment
  • We perform a battery of inspections from tooling, material to finished products as below
    • Tooling inspection
    • Material lot acceptance inspection
    • Material life test
    • First article inspection
    • Operator self-inspection
    • Random inspection
    • 100% inspection to key process and motor electric performance
    • Final inspection
    • Outgoing inspection
  • Tooling inspection
  • Material lot acceptance inspection
  • Material life test
  • First article inspection
  • Operator self-inspection
  • Random inspection
  • 100% inspection to key process and motor electric performance
  • Final inspection
  • Outgoing inspection
