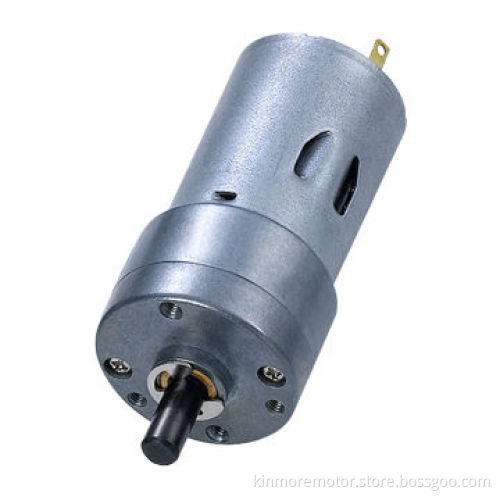

7.2V Ø32mm Gearbox Reduction Motor for Vending Machine

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Gearbox: Ø32mm
Material: die casting zinc
Shaft: Ø6mm inline carbon steel shaft with customized shapes and lengths
DC motor (Ø x L): 27.7 x 37.8mm
Rotation: CCW/CW, reversible
Gears: spur metal gears
Lubrication: grease filled
Way of commutation: carbon brush
Reduction ratios: 1/15, 1/17.3, 1/40, 1/46, 1/51.8, 1/105,1/136, 1/155, 1/278, 1/316, 1/409, 1/466, 1/732, 1/1,228 and 1/1.397.3
Suitable for vending machines, robots and car readers

Performance:

Ratio: 1/52
Voltage: 7.2V DC
At no load:
- Speed: 166.3rpm
- Current: 0.36A
At load:
- Speed: 132.1rpm
- Current: 1.99A (maximum)
- Torque: 3.0kg.cm

Optional:

Technical data like voltage, speed, torque, shaft direction, shaft length, D-shaped size and length

Learn more about our products:

Our main products: Ø6-52mm DC micro motor and gear motor, auto DC motor, electric motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor
Products size range: Ø6-52mm
DC voltage range: 1.5-42V
AC rectify: 100A
Speed range: 1-30,000RPM
Stall torque: 5g.cm-30kg.cm

Application:

Home appliance, power tools, toys and model, precision instrument, office equipment, personal care product, automotive, audio and visual equipment

Our service:

Professional team: with 40+ experienced engineer and 10+ international trade sales
In time reply: all the inquiries can be replied with 24 hours, 90% orders can be delivered on schedule and complaints can be handled within 7 days
Flexible service: we warmly welcome the customer's participation from the product design to bulk production, and we provide turnkey solution and OEM service

Gearbox: Ø32mm

Material: die casting zinc

Shaft: Ø6mm inline carbon steel shaft with customized shapes and lengths

DC motor (Ø x L): 27.7 x 37.8mm

Rotation: CCW/CW, reversible

Gears: spur metal gears

Lubrication: grease filled

Way of commutation: carbon brush

Reduction ratios: 1/15, 1/17.3, 1/40, 1/46, 1/51.8, 1/105,1/136, 1/155, 1/278, 1/316, 1/409, 1/466, 1/732, 1/1,228 and 1/1.397.3

Suitable for vending machines, robots and car readers

Ratio: 1/52

Voltage: 7.2V DC

At no load:

Speed: 166.3rpm
Current: 0.36A

At load:

Speed: 132.1rpm
Current: 1.99A (maximum)
Torque: 3.0kg.cm

Speed: 166.3rpm

Current: 0.36A

Speed: 132.1rpm

Current: 1.99A (maximum)

Torque: 3.0kg.cm

Technical data like voltage, speed, torque, shaft direction, shaft length, D-shaped size and length

Our main products: Ø6-52mm DC micro motor and gear motor, auto DC motor, electric motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor

Products size range: Ø6-52mm

DC voltage range: 1.5-42V

AC rectify: 100A

Speed range: 1-30,000RPM

Stall torque: 5g.cm-30kg.cm

Home appliance, power tools, toys and model, precision instrument, office equipment, personal care product, automotive, audio and visual equipment

Professional team: with 40+ experienced engineer and 10+ international trade sales

In time reply: all the inquiries can be replied with 24 hours, 90% orders can be delivered on schedule and complaints can be handled within 7 days

Flexible service: we warmly welcome the customer's participation from the product design to bulk production, and we provide turnkey solution and OEM service
