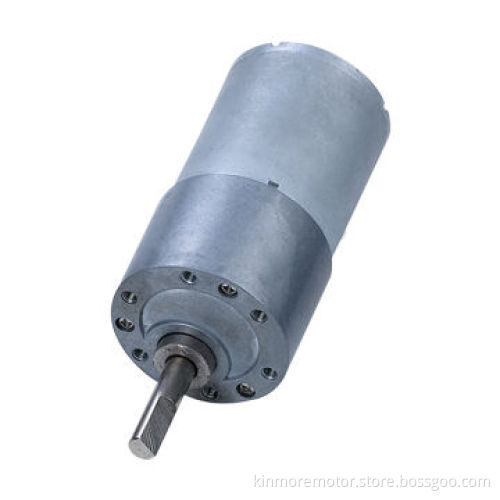

Sleeve Bronze Bushing 24V Satellite/Solar System DC Geared Reduction Motor

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Gearbox diameter: 37mm
Length varies with reduction ratio between 17.8 to 29.2mm
Shaft diameter: offset 6mm with customized length and D-shaped size and length
DC motor (D x H): 34.5 x 40mm
Gear ratio: 1/6.5, 1/10, 1/15, 1/19.5, 1/20, 1/24, 1/28, 1/30,1/35, 1/40, 1/50, 1/56, 1/58.5, 1/60, 1/70, 1/83, 1/90, 1/106,1/150, 1/180, 1/210, 1/270, 1/168, 1/280, 1/360, 1/432, 1/450,1/540, 1/630, 1/810 and 1/1,084

Technical performance data:

Nominal voltage: 24V
No loading speed: 247.2rpm
No loading current: 0.16A
On loading speed: 211.2rpm
On loading torque: 3.5kg/cm
On loading current: 0.56A

Customization options:

OEM and customization are accepted
Compliant with the RoHS Directive
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small TM)
High-torque at a low-speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Lightweight and long lifespan

Learn more about our products:

Main products: DC micro/gear motor, auto DC motor, electric motor, brush DC motor, spur gear motor, micro motor, vibration motor and more
Products size range:
- Diameter: 6 to 52mm
DC voltage range: 1.5 to 42V
AC rectify: 100V, 110V, 220V, 230V, 240V and more
Speed range: 1 to 30,000rpm
Stall torque: 5 to 30kg.cm

Applications:

Home appliances, power tools, toys/models,precision instrument, office equipment, personal care product,automotive, audio/visual equipment
