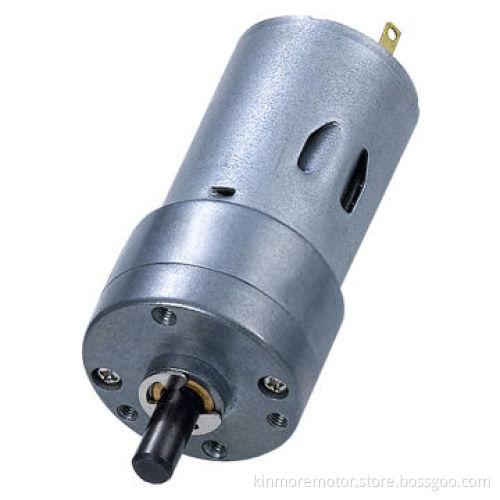

1:105 Reduction Ratio 12V DC Gear Motor, Made in China

1:105 Reduction Ratio 12V DC Gear Motor, Made in China

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

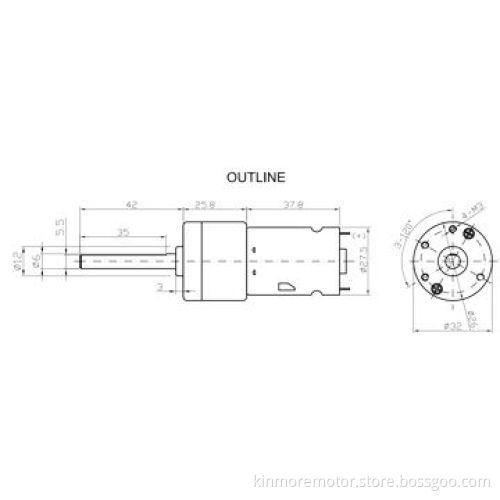

Gearbox(Ø x L): 32mm x 23.1mm
Material: die casting zinc
Shaft: Ø6mm inline carbon steel shaft with customized shapes and lengths
DC motor (Ø x L): 27.7 x 37.8mm
Rotation: CCW/CW, reversible
Gears: spur metal gears
Lubrication: grease filled
Way of commutation: carbon brush
Reduction ratios: 1/15, 1/17.3, 1/40, 1/46, 1/51.8, 1/105,1/136, 1/155, 1/278, 1/316, 1/409, 1/466, 1/732, 1/1,228 and1/1.397.3
Suitable for vending machines, robots and car readers

Performance:

Ratio: 1/105
Voltage: 12V DC
At no load:
- Speed: 120.4rpm
- Current: 0.21A (maximum)
At 5.0kg.cm load:
- Speed: 98rpm
- Current: 1.21A (maximum)
Optional: technical data like voltage, speed, torque, shaft direction, shaft length, D-shaped size and length

Customization options:

OEM and customization are accepted
RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small Tm)
High-torque at a low-speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Light weight and long lifespan

Learn more about us:

Our main products: diameter 6 to 52mm DC micro motor and gear motor
Auto DC motor, electric motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor and more
DC voltage range: 1.5 to 42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1 to 30,000rpm
Stall torque: 5g.cm to 30kg.cm

Applications: home appliances, power tools, toys and models,precision instrument, office equipment, personal care product,automotive, audio and visual equipment and more
