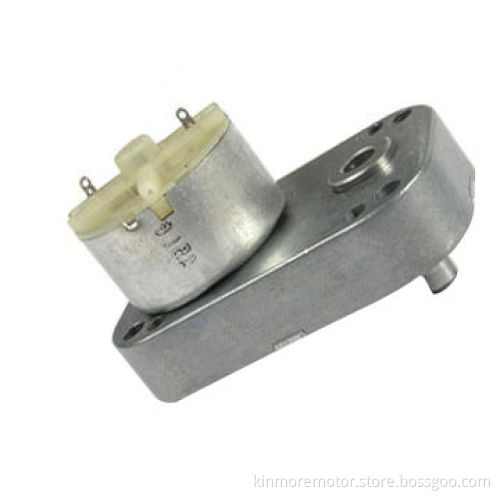

Low voltage big DC geared reduction motor supplier

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Products specifications:

Gearbox: 38 x 64.4 x 12mm
Material: die-cast zinc
Ratio: 1/105
Shaft: 6mm parallel dual-carbon steel shaft with customized direction (left or right or both), D shaped and length can be also custom made
DC motor: Ø32 x 19.5mm
Rotation: CCW/CW (reversible)
Gears: spur metal or plastic gears
Lubrication: grease filled
Way of commutation: carbon brush
Reduction ratios: 1/20.6, 1/36, 1/40, 1/60, 1/67, 1/78, 1/96,1/155.5, 1/178, 1/223 and 1/446

Technical data:

Voltage: 6V DC
At no load:
Speed: 25.7rpm
Current: 0.03A
At 0.85kg/cm load:
Speed: 20.7rpm
Current: 0.1A

Optional: technical data like voltage, speed, torque, shaftdirection, shaft lengths, D-shaped size and length

Learn more about our products:

Our main products: Dia6~52mm DC mcro motor and gear motor, auto DC motor, electric motor, gear Motor, DC motor, brush DC motor, spur gearmotor, micro motor, vibration motor and more
Products size range: Diameter: 6-52mm
DC voltage range: 1.5 -42V
AC rectify: 100V, 110V, 220V, 230V, 240V and more
Speed range: 1 RPM-30,000RPM
Stall torque: 5g.cm-30kg.cm
Application: Home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio & visual equipment and more

Gearbox: 38 x 64.4 x 12mm

Material: die-cast zinc

Ratio: 1/105

Shaft: 6mm parallel dual-carbon steel shaft with customized direction (left or right or both), D shaped and length can be also custom made

DC motor: Ø32 x 19.5mm

Rotation: CCW/CW (reversible)

Gears: spur metal or plastic gears

Lubrication: grease filled

Way of commutation: carbon brush

Reduction ratios: 1/20.6, 1/36, 1/40, 1/60, 1/67, 1/78, 1/96,1/155.5, 1/178, 1/223 and 1/446

Voltage: 6V DC

At no load:

Speed: 25.7rpm

Current: 0.03A

At 0.85kg/cm load:

Speed: 20.7rpm

Current: 0.1A

Our main products: Dia6~52mm DC mcro motor and gear motor, auto DC motor, electric motor, gear Motor, DC motor, brush DC motor, spur gearmotor, micro motor, vibration motor and more

Products size range: Diameter: 6-52mm

DC voltage range: 1.5 -42V

AC rectify: 100V, 110V, 220V, 230V, 240V and more

Speed range: 1 RPM-30,000RPM

Stall torque: 5g.cm-30kg.cm

Application: Home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio & visual equipment and more
