12V Gear Motor with 12kg.cm High-torque for Medical Bed

12V Gear Motor with 12kg.cm High-torque for Medical Bed

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

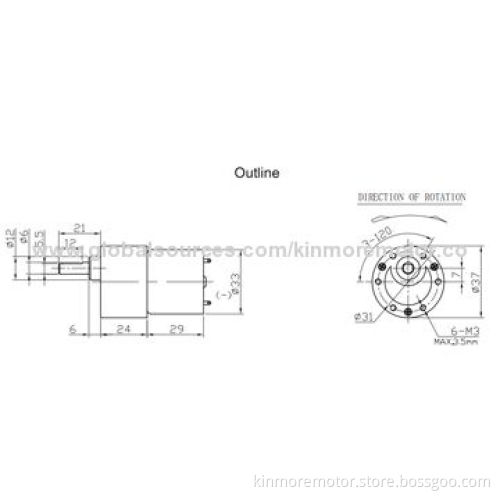

Dimensions:

Gearbox diameter: 37mm
Shaft diameter: offset 6mm with customized length, D-shaped size and length
Gear ratios: 1/6.5, 1/10, 1/15, 1/19.5 1/20, 1/24, 1/28,1/30,1/35, 1/40, 1/50, 1/56, 1/58.5, 1/60, 1/70, 1/83, 1/90, 1/106,1/150, 1/180, 1/210, 1/270, 1/168, 1/280, 1/360, 1/432, 1/450,1/540, 1/630 and 1/810/1/1084

Technical performance data:

Nominal voltage: 12V
No load speed: 10rpm
No load current: 0.1mA
Rated loading speed: 9.3rpm
Rated loading current: 180mA
Rated loading torque: 12kg.cm

Packing per carton:

Quantity: 75 pieces
Net weight: 14.480kg
Gross weight: 15.350kg
Size: 40.0 x 28.8 x 24.5cm

Customization options:

OEM and customization are available
ROHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small Tm)
High-torque at a low-speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Lightweight and long life

Gearbox diameter: 37mm

Shaft diameter: offset 6mm with customized length, D-shaped size and length

Gear ratios: 1/6.5, 1/10, 1/15, 1/19.5 1/20, 1/24, 1/28,1/30,1/35, 1/40, 1/50, 1/56, 1/58.5, 1/60, 1/70, 1/83, 1/90, 1/106,1/150, 1/180, 1/210, 1/270, 1/168, 1/280, 1/360, 1/432, 1/450,1/540, 1/630 and 1/810/1/1084

Nominal voltage: 12V

No load speed: 10rpm

No load current: 0.1mA

Rated loading speed: 9.3rpm

Rated loading current: 180mA

Rated loading torque: 12kg.cm

Quantity: 75 pieces

Net weight: 14.480kg

Gross weight: 15.350kg

Size: 40.0 x 28.8 x 24.5cm

OEM and customization are available

ROHS Directive-compliant
