12V DC Gear Motor with 4kg.cm Torque for RC Tool

12V DC Gear Motor with 4kg.cm Torque for RC Tool

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Specifications:

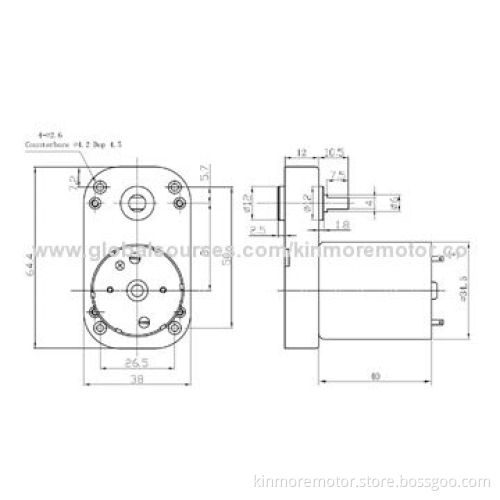

Gearbox: 38 x 64.4 x 12mm (material: die-cast zinc)
Shaft: 6mm parallel carbon steel shaft with custom direction (left or right or both), D-shaped and length
DC motor (D x L): Φ32 x 19.5mm
Rotation: CCW/CW, reversible
Gears: spur metal or plastic gears
Lubrication: grease filled
Way of commutation: carbon brush
Reduction ratio: 1/20.6, 1/36, 1/40, 1/60, 1/67, 1/78, 1/96,1/155.5, 1/178, 1/225 and 1/446
Ratio: 1/446
Voltage: 12V DC
At no load:
- Speed: 44.3rpm
- Current: 0.06A (maximum)
At on load:
- Speed: 36rpm
- Current: 0.21A
- Torque: 4kg.cm
Options: technical data like voltage, speed, torque, shaft direction, shaft length, D-shaped size and length

Customization options:

OEM and customization are available
RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response
High-torque at a low-speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Light weight and long lifetime

Learn more about us:

Auto dc motor, electric motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor and more
Size range (D): 6 to 52mm
DC voltage range: 1.5 to 42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1 to 30,000rpm
Stall torque: 5g.cm to 30kg.cm
Applications: home appliances, power tools, toys and model, precision instrument, office equipment, personal care product, automotive, audio and visual equipment and more

Gearbox: 38 x 64.4 x 12mm (material: die-cast zinc)

Shaft: 6mm parallel carbon steel shaft with custom direction (left or right or both), D-shaped and length

DC motor (D x L): Φ32 x 19.5mm

Rotation: CCW/CW, reversible

Gears: spur metal or plastic gears

Lubrication: grease filled

Way of commutation: carbon brush

Reduction ratio: 1/20.6, 1/36, 1/40, 1/60, 1/67, 1/78, 1/96,1/155.5, 1/178, 1/225 and 1/446

Ratio: 1/446

Voltage: 12V DC

At no load:

Speed: 44.3rpm
Current: 0.06A (maximum)

At on load:

Speed: 36rpm
Current: 0.21A
Torque: 4kg.cm

Options: technical data like voltage, speed, torque, shaft direction, shaft length, D-shaped size and length

Speed: 44.3rpm

Current: 0.06A (maximum)

Speed: 36rpm

Current: 0.21A

Torque: 4kg.cm

OEM and customization are available

RoHS Directive-compliant

Ball bearing in output side

EMI suppression

Low-cogging design

High-degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low-noise design

Fast response

High-torque at a low-speed

PTC protection

Phenolic resin base commutator

Epoxy coating armature

Light weight and long lifetime

Auto dc motor, electric motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor and more

Size range (D): 6 to 52mm

DC voltage range: 1.5 to 42V

AC rectify: 100, 110, 220, 230, 240V and more

Speed range: 1 to 30,000rpm

Stall torque: 5g.cm to 30kg.cm

Applications: home appliances, power tools, toys and model, precision instrument, office equipment, personal care product, automotive, audio and visual equipment and more
