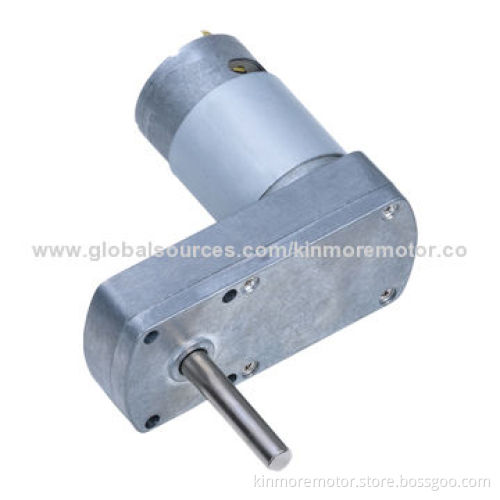

Mini 12V DC Geared Motor, Used for Vending, Air Pillow Machines and Other Home Applications

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Features:

Bi-direction
Carbon brush DC motor
Spur gears
Zinc die-cast gear case
Sleeve bronze bushing

Specifications:

Reduction ratio: 1/189
Voltage: 12V DC

No load:

Current: 0.6A
Speed: 41.7rpm

On load:

Current: 2.4A
Torque: 40kg.cm
Speed: 35.5rpm
Direction of rotation: CW/CCW

Dimensions:

Diameter of motor housing: 35.8mm
Length of motor length: 57mm
Dimensions of gearbox: 42*9*20mm
Diameter of shaft: 7mm (could be made D-cut)
Length of shaft: could be customized

Typical applications:

Vending machines
Air pillow machines
Power tools
Models

Our service:

OEM and customization are available
ROHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small TM)
High-torque at a low-speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Lightweight and long lifespan

Bi-direction

Carbon brush DC motor

Spur gears

Zinc die-cast gear case

Sleeve bronze bushing

Reduction ratio: 1/189

Voltage: 12V DC

Current: 0.6A

Speed: 41.7rpm

Current: 2.4A

Torque: 40kg.cm

Speed: 35.5rpm

Direction of rotation: CW/CCW

Diameter of motor housing: 35.8mm

Length of motor length: 57mm

Dimensions of gearbox: 42*9*20mm

Diameter of shaft: 7mm (could be made D-cut)

Length of shaft: could be customized

Vending machines

Air pillow machines

Power tools

Models

OEM and customization are available

ROHS Directive-compliant

Ball bearing in output side

EMI suppression

Low-cogging design

High-degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low-noise design

Fast response (small TM)

High-torque at a low-speed

PTC protection

Phenolic resin base commutator

Epoxy coating armature

Lightweight and long lifespan
