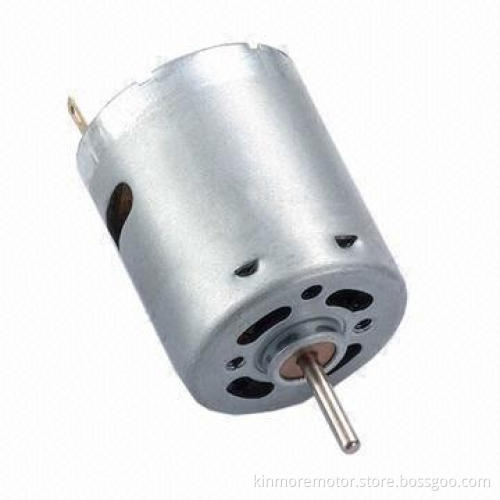

12V DC Motor with 27.7 x 32.6mm Case/2.3mm Shaft, for Fans/Hair Dryers/Sprayers/Air Refreshers/Toys

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Performance:

At no load:

At maximum efficiency:

At stall:

Current: 1.7A
Torque: 24.5mNm
Options: shaft length, technical data like voltage, speed,torque, optional EMI and EMC suppression

Packaging per carton:

Suitable for fans/hair dryers/sprayers/air refreshers/toys

Size (D x L): Ø32.6 x 27.7mm

Material: zinc-coated steel strip

Shaft: Ø2.3mm carbon steel (nickel-coated)

Way of commutation: carbon leaf brush system

Structure: 2-pole stators and 5-slot armature

Insulation: class F magnet wire

Rotation: CW/CCW and reversible

EMC/EMI suppression: optional

Rated voltage: 12V DC

Speed: 8,000rpm

Current: 0.14A

Speed: 6,215pm

Current: 0.49A

Torque: 5.5mNm

Output: 3.56W

Efficiency: 60.8%

Current: 1.7A

Torque: 24.5mNm

Options: shaft length, technical data like voltage, speed,torque, optional EMI and EMC suppression

Quantity: 140 pieces

Net weight: 7.0kg

Gross weight: 7.7kg

C/NO: X-Y

Dimensions: 37 x 29 x 12cm
