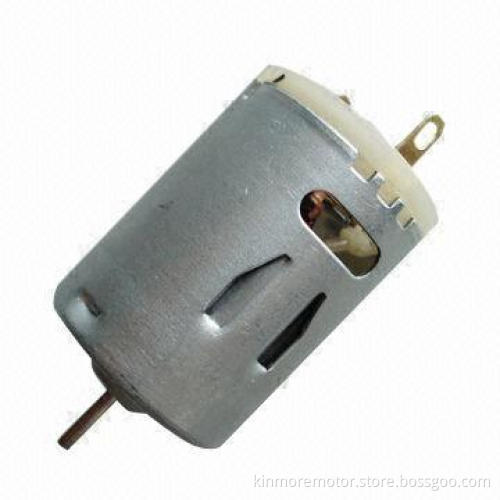

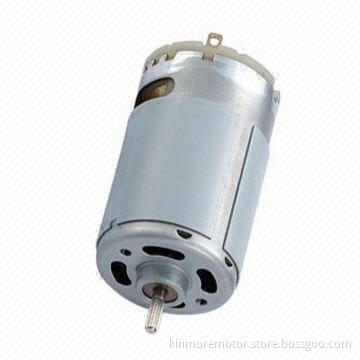

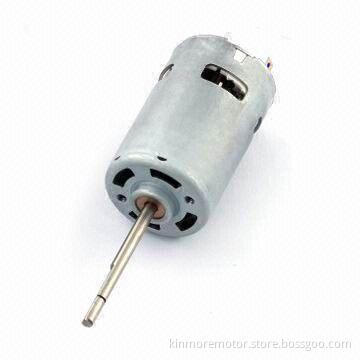

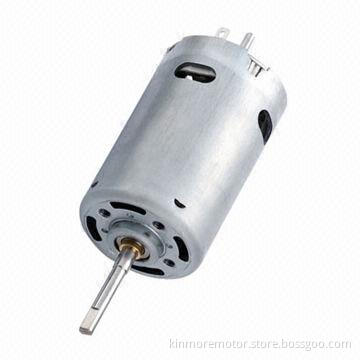

40V Small DC Motor for Hair Dryers, Water Pumps, Air Pumps, Washers and Printers

40V Small DC Motor for Hair Dryers, Water Pumps, Air Pumps, Washers and Printers

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Physical outline:

Dimensions (D x L): 27.7 x 37.8mm
Material: SECD
Shaft: Ø2.3mm carbon steel (nickel-coated)
Way of commutation: carbon leaf brush system
Structure: 3 or 5 poles armature
Insulation: class F magnet wire
Rotation: CW and CCW reversible
EMC/EMI suppression options: varistor, capacitor and choke

Technical performance:

Nominal voltage: 40V
No loading speed: 16,500rpm
No loading current: 0.1A

At (maximum) efficiency:

On loading speed: 13,970rpm
On loading torque: 103g.cm

At stall:

Torque: 617g.cm
Current: 3.05A
Above is just one specification for your reference, all datacan be tailor made after evaluation, such as voltage, speed andtorque

Packing per carton:

Quantity: 300 pieces
Net weight: 20.3kg
Gross weight: 21kg
Measurements: 35 x 24.3 x 23.8cm

Customization options:

OEM and customization are available
RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small Tm)
High-torque at a low-speed
PTC protection
Penolic resin base commentator
Epoxy coating armature
Lightweight and long lifespan

Constructions of motor:

2-pole stator
Sr ferrite permanent magnet
3, 5, 7, 8, 9, 12 slots armature
Silicon-steel lamination with epoxy coating
High-carbon steel shaft
Cu-Ag alloys commentator
Copper-graphite brushes
Be-cu leaf-brush commutating system
SECD round/flat shape housing
SECD end cap/PA66 + fiber end cap
Cylinder (self-aligning) sintered bush
155 degrees (class F) copper wire

Dimensions (D x L): 27.7 x 37.8mm

Material: SECD

Shaft: Ø2.3mm carbon steel (nickel-coated)

Way of commutation: carbon leaf brush system

Structure: 3 or 5 poles armature

Insulation: class F magnet wire

Rotation: CW and CCW reversible

EMC/EMI suppression options: varistor, capacitor and choke

Nominal voltage: 40V

No loading speed: 16,500rpm

No loading current: 0.1A

On loading speed: 13,970rpm

On loading torque: 103g.cm

Torque: 617g.cm

Current: 3.05A

Above is just one specification for your reference, all datacan be tailor made after evaluation, such as voltage, speed andtorque

Quantity: 300 pieces

Net weight: 20.3kg

Gross weight: 21kg

Measurements: 35 x 24.3 x 23.8cm

OEM and customization are available

RoHS Directive-compliant

Ball bearing in output side

EMI suppression

Low-cogging design

High-degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low-noise design

Fast response (small Tm)

High-torque at a low-speed

PTC protection

Penolic resin base commentator

Epoxy coating armature

Lightweight and long lifespan

2-pole stator

Sr ferrite permanent magnet

3, 5, 7, 8, 9, 12 slots armature

Silicon-steel lamination with epoxy coating

High-carbon steel shaft

Cu-Ag alloys commentator

Copper-graphite brushes

Be-cu leaf-brush commutating system

SECD round/flat shape housing

SECD end cap/PA66 + fiber end cap

Cylinder (self-aligning) sintered bush

155 degrees (class F) copper wire
