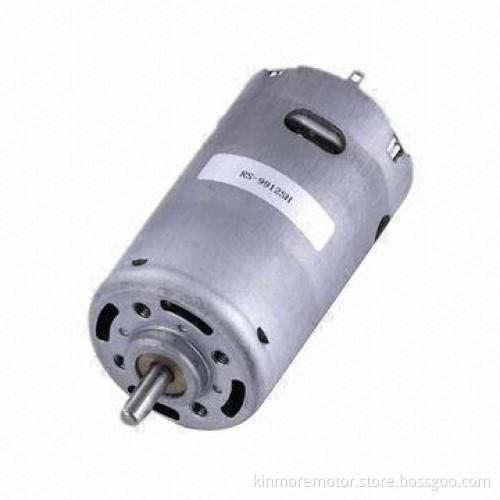

220V DC Motor for Fitness Apparatus, Kitchen Hand Blenders, Food Mixers, Juicer and Meat Grinder
  • 220V DC Motor for Fitness Apparatus, Kitchen Hand Blenders, Food Mixers, Juicer and Meat Grinder
220V DC Motor for Fitness Apparatus, Kitchen Hand Blenders, Food Mixers, Juicer and Meat Grinder

220V DC Motor for Fitness Apparatus, Kitchen Hand Blenders, Food Mixers, Juicer and Meat Grinder

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Size (D x L): 51.8 x 85mm
    • Housing material: SECD
    • Shaft: Ø6.35mm carbon steel (nickel-coated)
    • Way of commutation: carbon leaf brush system
    • SECC end cap
    • Structure: 2 poles stator and 12 slots armature
    • Insulation: class F magnet wire
    • Rotation: CW/CCW and reversible
    • Ball bearing on the driving side is available
    • For kitchen hand blenders, food mixers, juicer, meat grindersand coffee machines
  • Technical performance data:
    • Rated voltage: 220V DC
    • No load:
      • Speed: 11,500rpm
      • Current: 0.3A
    • At maximum efficiency:
      • Speed: 9,000rpm
      • Current: 1A
      • Torque: 187.3mNm
      • Power: 179.8W
    • At stall:
      • Torque: 861mNm
      • Current: 3.52A
    • Options: shaft length, D-shape, knurling, technical data likevoltage, speed, torque, EMI and EMC suppression
  • OEM orders are accepted
  • Customized specifications are welcome
  • RoHS Directive-compliant
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High degree of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low noise design
  • Fast response
  • High torque at a low speed
  • PTC protection
  • Penolic resin base commutator
  • Epoxy coating armature
  • Lightweight and long lifespan
  • Size (D x L): 51.8 x 85mm
  • Housing material: SECD
  • Shaft: Ø6.35mm carbon steel (nickel-coated)
  • Way of commutation: carbon leaf brush system
  • SECC end cap
  • Structure: 2 poles stator and 12 slots armature
  • Insulation: class F magnet wire
  • Rotation: CW/CCW and reversible
  • Ball bearing on the driving side is available
  • For kitchen hand blenders, food mixers, juicer, meat grindersand coffee machines
  • Rated voltage: 220V DC
  • No load:
    • Speed: 11,500rpm
    • Current: 0.3A
  • At maximum efficiency:
    • Speed: 9,000rpm
    • Current: 1A
    • Torque: 187.3mNm
    • Power: 179.8W
  • At stall:
    • Torque: 861mNm
    • Current: 3.52A
  • Options: shaft length, D-shape, knurling, technical data likevoltage, speed, torque, EMI and EMC suppression
  • Speed: 11,500rpm
  • Current: 0.3A
  • Speed: 9,000rpm
  • Current: 1A
  • Torque: 187.3mNm
  • Power: 179.8W
  • Torque: 861mNm
  • Current: 3.52A
