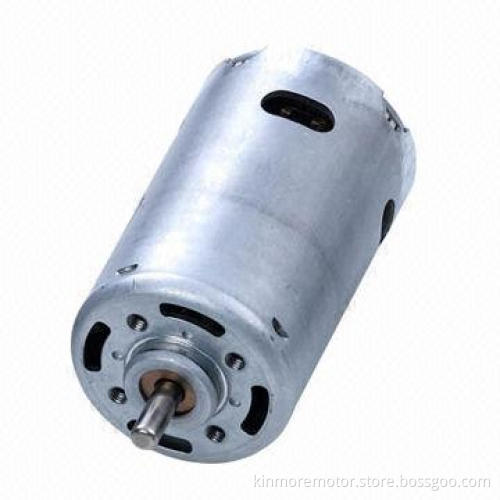

24V High-torque DC Motor for Water Pump 7,000rpm
  • 24V High-torque DC Motor for Water Pump 7,000rpm
  • 24V High-torque DC Motor for Water Pump 7,000rpm
24V High-torque DC Motor for Water Pump 7,000rpm
24V High-torque DC Motor for Water Pump 7,000rpm

24V High-torque DC Motor for Water Pump 7,000rpm

Get Latest Price
Payment Type:
Letter of Credit (LC, L/C)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Letter of Credit (LC, L/C)
Product Description
Product Description
  • Carbon brush
  • Diameter: 51.8 x 85mm
  • Shaft: 6.35mm
  • High-efficiency, excellent power
  • With RoHS and CCC approvals
  • Measuring conditions:
    • Rated voltage: 24V DC
    • Motor position: to be measured with motor horizontallyheld
    • Environmental temperature: 25 ±10°C
    • Environmental humidity: 65% ±20% RH
  • Electrical characteristics (at initial stage after 30 secondsrun-in):
    • At no load:
      • Speed: 7,000rpm ±10%
      • Current: 0.45A (maximum of 0.83A)
    • At maximum efficiency:
      • Torque: 1148.5g.cm
      • Speed: 6,282rpm ±10%
      • Current: 3.94A (maximum of 7.1A)
    • At stall:
      • Torque: 11,205 g.cm
      • Current: 34.5A (maximum of 62.1A)
    • Direction of rotation: CCW (counter-clockwise when viewing fromthe output shaft end with positive voltage applied to positiveterminal)
  • Mechanical characteristics:
    • Dimension drawing: see outline
    • End play: 0.05 to 0.55mm, EMC filter: 2 chokes and 2 caps
    • Operating temperature: -10 to 60°C
  • Remark: the above technical data are only for reference, we cancustomize them according to different requirements afterevaluation
  • Rated voltage: 24V DC
  • Motor position: to be measured with motor horizontallyheld
  • Environmental temperature: 25 ±10°C
  • Environmental humidity: 65% ±20% RH
  • At no load:
    • Speed: 7,000rpm ±10%
    • Current: 0.45A (maximum of 0.83A)
  • At maximum efficiency:
    • Torque: 1148.5g.cm
    • Speed: 6,282rpm ±10%
    • Current: 3.94A (maximum of 7.1A)
  • At stall:
    • Torque: 11,205 g.cm
    • Current: 34.5A (maximum of 62.1A)
  • Direction of rotation: CCW (counter-clockwise when viewing fromthe output shaft end with positive voltage applied to positiveterminal)
  • Speed: 7,000rpm ±10%
  • Current: 0.45A (maximum of 0.83A)
  • Torque: 1148.5g.cm
  • Speed: 6,282rpm ±10%
  • Current: 3.94A (maximum of 7.1A)
  • Torque: 11,205 g.cm
  • Current: 34.5A (maximum of 62.1A)
  • Dimension drawing: see outline
  • End play: 0.05 to 0.55mm, EMC filter: 2 chokes and 2 caps
  • Operating temperature: -10 to 60°C
