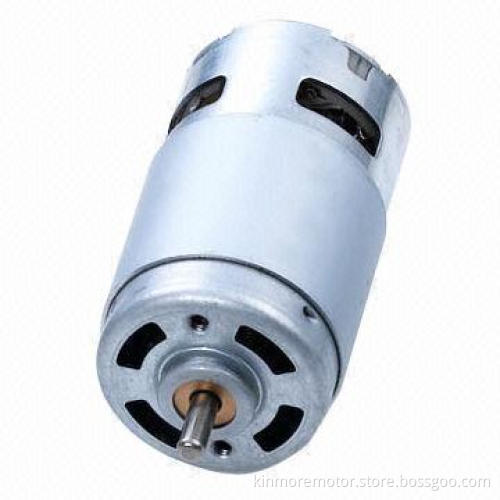

12V DC Motor for Car EPB and Air Pumps with RoHS Mark
  • 12V DC Motor for Car EPB and Air Pumps with RoHS Mark
12V DC Motor for Car EPB and Air Pumps with RoHS Mark

12V DC Motor for Car EPB and Air Pumps with RoHS Mark

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Rated voltage: 12V DC
    • Motor position: to be measured with motor horizontallyheld
    • Environmental temperature: 25 ± 10°C
    • Environmental humidity: 65 ± 20% RH
    • Characteristics:
      • At no loading:
        • Speed: 11,000 ± 10%rpm
        • Current: 1.5A (maximum 2.6A)
      • At maximum efficiency:
        • Torque: 927.5g/cm
        • Speed: 9,609 ± 10%rpm
        • Current: 10.37A (maximum 18.7A)
      • At stall:
        • Torque: 7,335g/cm
        • Current: 71.58A (maximum 128.8A)
      • Direction of rotation: CCW (counter-clockwise when viewing fromthe output shaft end with positive voltage applied to positiveterminal
    • Mechanical:
      • End play: 0.05 to 0.55mm (maximum)
      • Class F magnet wire
      • EMI filter: 2 chokes and 2 caps
      • Operating temperature: -10 to +60°C
    • Typical applications: electric tools, electric parking brake,cordless power tools, air pumps/vacuum cleaners, RC model boats,car EPB and more
  • Customized options:
    • OEM and customized orders are accepted
    • With the RoHS Directive-compliant
    • Ball bearing in output side
    • EMI suppression
    • Low-cogging design
    • High-degrees of protection
    • Small mechanical time constant
    • Resist intense vibrations
    • Zero axial gap
    • Low-noise design
    • Fast response (small TM)
    • High-torque at a low-speed
    • PTC protection
    • Phenolic resin Base commentator
    • Epoxy coating armature
    • Lightweight and long lifespan
  • Applications:
    • Home appliance
    • Power Tools
    • Toys and models
    • Precision instrument
    • Office equipment
    • Personal care product
    • Automotive
    • Audio and visual equipment and more
  • Rated voltage: 12V DC
  • Motor position: to be measured with motor horizontallyheld
  • Environmental temperature: 25 ± 10°C
  • Environmental humidity: 65 ± 20% RH
  • Characteristics:
    • At no loading:
      • Speed: 11,000 ± 10%rpm
      • Current: 1.5A (maximum 2.6A)
    • At maximum efficiency:
      • Torque: 927.5g/cm
      • Speed: 9,609 ± 10%rpm
      • Current: 10.37A (maximum 18.7A)
    • At stall:
      • Torque: 7,335g/cm
      • Current: 71.58A (maximum 128.8A)
    • Direction of rotation: CCW (counter-clockwise when viewing fromthe output shaft end with positive voltage applied to positiveterminal
  • Mechanical:
    • End play: 0.05 to 0.55mm (maximum)
    • Class F magnet wire
    • EMI filter: 2 chokes and 2 caps
    • Operating temperature: -10 to +60°C
  • Typical applications: electric tools, electric parking brake,cordless power tools, air pumps/vacuum cleaners, RC model boats,car EPB and more
  • At no loading:
    • Speed: 11,000 ± 10%rpm
    • Current: 1.5A (maximum 2.6A)
  • At maximum efficiency:
    • Torque: 927.5g/cm
    • Speed: 9,609 ± 10%rpm
    • Current: 10.37A (maximum 18.7A)
  • At stall:
    • Torque: 7,335g/cm
    • Current: 71.58A (maximum 128.8A)
  • Direction of rotation: CCW (counter-clockwise when viewing fromthe output shaft end with positive voltage applied to positiveterminal
  • Speed: 11,000 ± 10%rpm
  • Current: 1.5A (maximum 2.6A)
  • Torque: 927.5g/cm
  • Speed: 9,609 ± 10%rpm
  • Current: 10.37A (maximum 18.7A)
  • Torque: 7,335g/cm
  • Current: 71.58A (maximum 128.8A)
  • End play: 0.05 to 0.55mm (maximum)
  • Class F magnet wire
  • EMI filter: 2 chokes and 2 caps
  • Operating temperature: -10 to +60°C
  • OEM and customized orders are accepted
  • With the RoHS Directive-compliant
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High-degrees of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low-noise design
  • Fast response (small TM)
  • High-torque at a low-speed
  • PTC protection
  • Phenolic resin Base commentator
  • Epoxy coating armature
  • Lightweight and long lifespan
  • Home appliance
  • Power Tools
  • Toys and models
  • Precision instrument
  • Office equipment
  • Personal care product
  • Automotive
  • Audio and visual equipment and more
