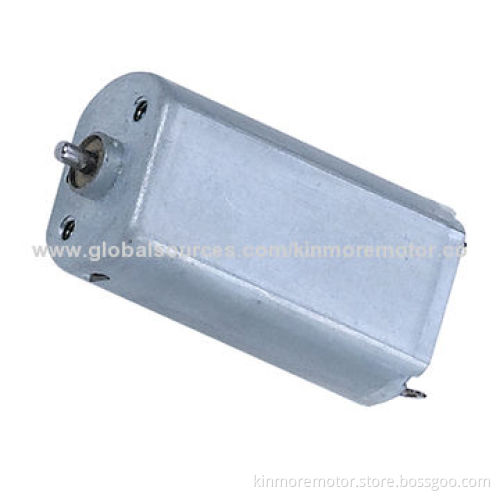

Permanent magnet DC motor with metal brush for electric shaver

Permanent magnet DC motor with metal brush for electric shaver

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Dimensions of the motor:

Diameter: 15.5mm
Length: 26.5mm
Height: 12mm
Shaft diameter: 4.7mm

Performance of the motor:

Voltage:
- Operating range: 2.0-9.0
- Nominal voltage: 7V
No load:
- Speed: 12,500rpm
- Current: 0.06A
At maximum efficiency:
- Speed: 9,800rpm
- Current: 0.3A
- Torque: 1.18mNm/12g.cm
- Output: 1.2W
Stall:
- Torque: 5.29mNm/54g.cm
- Current: 1.1A
- Direction of rotation: CW/CCW
- End play: 0.05-0.45mm
Note: above is just for customers' reference, customized specifications are welcomed

Features:

Permanent magnet
Precious metal brush
Stainless steel shaft
Oil-impregnated bearing

Typical applications:

Electric shaver
CD/DVD-ROM drive
CD/DVD player
Toy

Construction of motor:

Two-pole stator
SR ferrite permanent magnet
3, 5, 7, 8, 9 and 12 slots armature
Silicone steel lamination with epoxy coating
High-carbon steel shaft
Cu-Ag alloys commentator
Copper graphite brushes
Cu leaf brush commutation system
SECD round/flat-shaped housing
SECD end cap/PA66 and fiber end cap
Cylinder (self-aligning) sintered bush
155° (class F) copper wire

Our company profile:

Private Company, located in Shenzhen, China
2 factories, 900+ employees and 90 million pcs annual capacity
Active in more than 50 countries
Sales in 2013: USD115 million
Output in 2013:60 million pcs
10% sales invested in R&D and new facilities
ISO/TS 16949:2009 and ISO 9001:2008 certified factories
Continuously focus on customers’ needs and products improvement

Diameter: 15.5mm

Length: 26.5mm

Height: 12mm

Shaft diameter: 4.7mm

Voltage:

Operating range: 2.0-9.0
Nominal voltage: 7V

No load:

Speed: 12,500rpm
Current: 0.06A

At maximum efficiency:

Speed: 9,800rpm
Current: 0.3A
Torque: 1.18mNm/12g.cm
Output: 1.2W

Stall:

Torque: 5.29mNm/54g.cm
Current: 1.1A
Direction of rotation: CW/CCW
End play: 0.05-0.45mm

Note: above is just for customers' reference, customized specifications are welcomed

Operating range: 2.0-9.0

Nominal voltage: 7V

Speed: 12,500rpm

Current: 0.06A

Speed: 9,800rpm

Current: 0.3A

Torque: 1.18mNm/12g.cm

Output: 1.2W

Torque: 5.29mNm/54g.cm

Current: 1.1A

Direction of rotation: CW/CCW

End play: 0.05-0.45mm

Permanent magnet

Precious metal brush

Stainless steel shaft

Oil-impregnated bearing

Electric shaver

CD/DVD-ROM drive

CD/DVD player

Toy

Two-pole stator

SR ferrite permanent magnet

3, 5, 7, 8, 9 and 12 slots armature

Silicone steel lamination with epoxy coating

High-carbon steel shaft

Cu-Ag alloys commentator

Copper graphite brushes

Cu leaf brush commutation system

SECD round/flat-shaped housing

SECD end cap/PA66 and fiber end cap

Cylinder (self-aligning) sintered bush

155° (class F) copper wire

Private Company, located in Shenzhen, China

2 factories, 900+ employees and 90 million pcs annual capacity

Active in more than 50 countries

Sales in 2013: USD115 million

Output in 2013:60 million pcs

10% sales invested in R&D and new facilities

ISO/TS 16949:2009 and ISO 9001:2008 certified factories

Continuously focus on customers’ needs and products improvement
