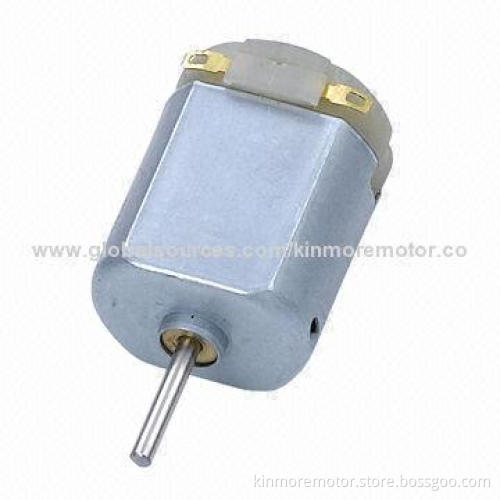

Factory Supply 3V/4,024rpm RC Toy Micro DC Motor with 2015.225mm Size

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Dimensions of the motor:

Diameter: 20mm
Length: 25mm
Height: 15.2mm
Shaft diameter: 2.0mm

Performance of the motor:

Operating voltage range: 3V DC
Motor position: to be measured with motor horizontally held
Environmental temperature: 25 ±10°C
Environmental humidity: 65% ±20% RH
Electrical characteristics (at initial stage after 30 seconds run-in):

At no loading:

Speed: 4024 ±10%rpm
Current: 0.09A (maximum)
At maximum efficiency
Torque: 7.6g.cm
Speed: 2,897 ±12% rpm
Current: 0.16A (maximum 0.2A)

At stall:

Torque: 27.2g.cm
Current: 0.41A (maximum 0.6A)
Direction of rotation: CCW (counter-clockwise when viewing from the output shaft end with positive voltage applied to positive terminal

Mechanical characteristics:

Dimensions drawing: see (out sine)
End play: 0.05-0.5mm
Operating temperature: 0°C-+45°C
Features:
Plastic end cap
Precious metal brush/carbon brush
Carbon steel shaft
Oil-impregnated bearing

Typical applications:

Rearview mirror
Headlamp adjuster
Mirror adjuster
-RC model/toy

Construction of motor:

Two-pole stator
SR ferrite permanent magnet
3, 5, 7, 8, 9 and 12 slots armature
Silicone steel lamination with epoxy coating
High-carbon steel shaft
Cu-Ag alloys commentator
Copper graphite brushes
Cu leaf brush commutation system
SECD round/flat-shaped housing
SECD end cap/PA66 and fiber end cap
Cylinder (self-aligning) sintered bush
155° (class F) copper wire

Note: above is just for customers' reference, customized specifications are welcomed

Diameter: 20mm

Length: 25mm

Height: 15.2mm

Shaft diameter: 2.0mm

Operating voltage range: 3V DC

Motor position: to be measured with motor horizontally held

Environmental temperature: 25 ±10°C

Environmental humidity: 65% ±20% RH

Electrical characteristics (at initial stage after 30 seconds run-in):

Speed: 4024 ±10%rpm

Current: 0.09A (maximum)

At maximum efficiency

Torque: 7.6g.cm

Speed: 2,897 ±12% rpm

Current: 0.16A (maximum 0.2A)

Torque: 27.2g.cm

Current: 0.41A (maximum 0.6A)

Direction of rotation: CCW (counter-clockwise when viewing from the output shaft end with positive voltage applied to positive terminal

Dimensions drawing: see (out sine)

End play: 0.05-0.5mm

Operating temperature: 0°C-+45°C

Features:

Plastic end cap

Precious metal brush/carbon brush

Carbon steel shaft

Oil-impregnated bearing

Rearview mirror

Headlamp adjuster

Mirror adjuster

-RC model/toy

Two-pole stator

SR ferrite permanent magnet

3, 5, 7, 8, 9 and 12 slots armature

Silicone steel lamination with epoxy coating

High-carbon steel shaft

Cu-Ag alloys commentator

Copper graphite brushes

Cu leaf brush commutation system

SECD round/flat-shaped housing

SECD end cap/PA66 and fiber end cap

Cylinder (self-aligning) sintered bush

155° (class F) copper wire
