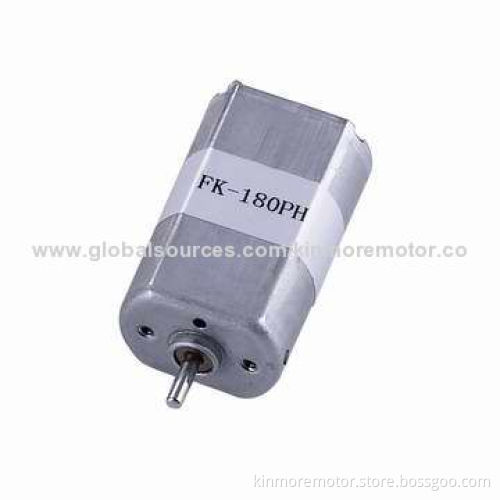

DC Motor Manufacturer, Applications for Massager, Toy, RC Model and Game Controller

DC Motor Manufacturer, Applications for Massager, Toy, RC Model and Game Controller

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Specifications:

Motor housing (D x flat x L): Ø20.4 x 15.4 x 32.1mm (material: SECD)
Shaft: Ø2.0mm carbon steel (nickel-coated)
Way of commutation: metal brush system
Structure: 2-pole stators and 3-slot armature
Insulation: class F magnet wire
Rotation: CW/CCW and reversible

Performance:

Rated voltage: 1.2V DC
At no load:
- Speed: 5,900rpm
- Current: 350mA maximum

At maximum efficiency:

Speed: 4,200rpm
Current: 1,800mA (maximum)
Torque: 23g.cm

At stall:

Current: 4,300mA (maximum)
Torque: 58g.cm (minimum)

Options: shaft length, technical data like voltage, speed, torque, optional EMI and EMC suppression

Packaging:

Quantity: 350 pieces
Gross weight: 12.2kg (approximately)
Dimensions: 41 x 27.5 x 12.5cm

About us:

Main products: auto DC, electric, gear, brush, spur gear, micro, vibration and more motors
Product size range: 6-52mm, diameter
DC voltage range: 1.5-42V
AC rectify range: 100, 110, 220, 230, 240V and more
Speed range: 1-30,000rpm
Stall torque range: 5-30kg.cm
Applications: home appliance, power tools, toys, model, precision instrument, office equipment, personal care product, automotive, audio, visual equipment and more

Motor housing (D x flat x L): Ø20.4 x 15.4 x 32.1mm (material: SECD)

Shaft: Ø2.0mm carbon steel (nickel-coated)

Way of commutation: metal brush system

Structure: 2-pole stators and 3-slot armature

Insulation: class F magnet wire

Rotation: CW/CCW and reversible

Rated voltage: 1.2V DC

At no load:

Speed: 5,900rpm
Current: 350mA maximum

Speed: 5,900rpm

Current: 350mA maximum

Speed: 4,200rpm

Current: 1,800mA (maximum)

Torque: 23g.cm

Current: 4,300mA (maximum)

Torque: 58g.cm (minimum)

Quantity: 350 pieces

Gross weight: 12.2kg (approximately)

Dimensions: 41 x 27.5 x 12.5cm

Main products: auto DC, electric, gear, brush, spur gear, micro, vibration and more motors

Product size range: 6-52mm, diameter

DC voltage range: 1.5-42V

AC rectify range: 100, 110, 220, 230, 240V and more

Speed range: 1-30,000rpm

Stall torque range: 5-30kg.cm

Applications: home appliance, power tools, toys, model, precision instrument, office equipment, personal care product, automotive, audio, visual equipment and more
